Description
Note: All Binder product sales are final. Non-cancelable, non-returnable (NCNR).
| Part no. | BN76-0244-0024-00845-0200 (Formerly 09 0642 400 05) |
|---|---|

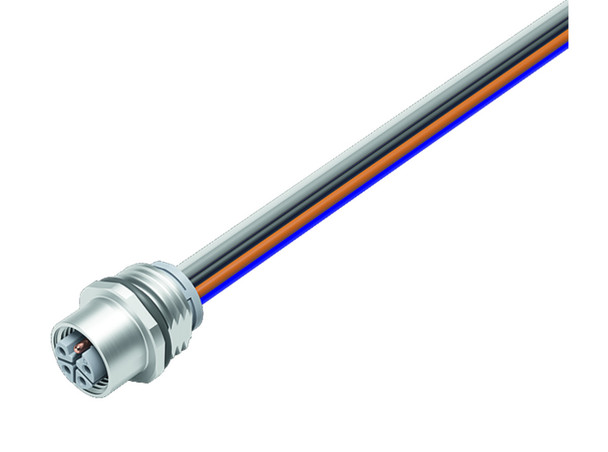

| Connector design | Female panel mount connector |
| Version | Connector socket straight |
| Connector locking system | screw |
| Termination | single wires |
| Degree of protection | IP68 |
| Cross-sectional area | AWG 14 |
| Temperature range from/to | -40 °C / 105 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 35.78 |
| Customs tariff number | 85369010 |
| Rated voltage | 63 V |
|---|---|
| Rated impulse voltage | 1500 V |
| Rated current (40 °C) | 16.0 A |
| Insulation resistance | > 10¹⁰ Ω |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| EMC compliance | unshielded |
| Housing material | Zinc die-cast nickel-plated |
|---|---|
| Contact body material | PA |
| Contact material | CuSn (bronze) |
| Contact plating | Au (gold) |
| Locking material | Zinc die-cast nickel-plated |
| REACH SVHC | CAS 7439-92-1 (Lead) |
| SCIP number | c83506d9-c310-4962-9888-e2c800d09772 |
