binders double-ended RJ45 connectors are designed for reliable Ethernet IP and PROFINET data transmission. The RJ45 connectors come in different cable lengths and with different Industrial ethernet cables such as Ethernet CAT7, CAT6a or Ethernet CAT5e. binders RJ45 cable connectors are shielded, achieve protection class IP20 and are available with 4 to 8 contacts. The double-ended ethernet cordsets are also available in different versions such as M8 D-coded to RJ45, M12 to RJ45, M12 D-coded to RJ45 and M12 X-coded to RJ45.

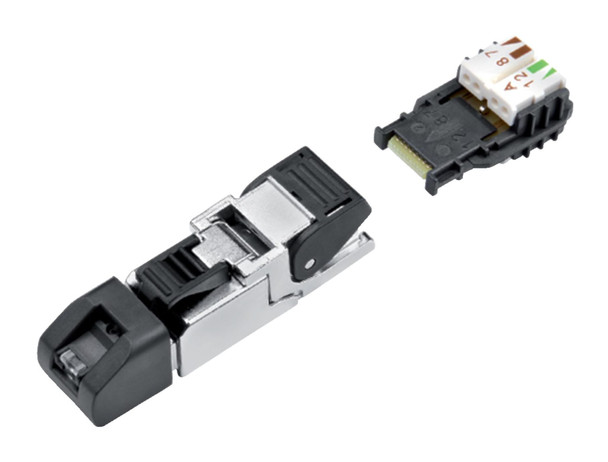

General Features| Part no. | 99 9647 810 04 |
|---|
| Connector design | RJ45 connector |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | lock |
|---|
| Termination | cutting clamp |
|---|
| Degree of protection | IP20 |
|---|
| Cross-sectional area | AWG 24-22/1, AWG 27-22/7 |
|---|
| Cable outlet | 5.0-9.0 mm |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 750 Mating cycles |
|---|
| Connection standard | TIA 568 Profinet |
|---|
| Weight (g) | 25.34 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 50 V DC |
|---|
| Rated current (40 °C) | 1.3 A |
|---|
| Pollution degree | 2 |
|---|
| Transmission rate | CAT 6A |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | IIIa |
|---|
| EMC compliance | shieldable |
|---|
| Shield connection | Shield clamping |
|---|
Material| Housing material | Zinc die-cast nickel-plated |
|---|
| Contact body material | PC |
|---|
| Contact material | Spring steel |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | None (No pollutants)
|
|---|
| SCIP number | SCIP-number not available |
|---|
