These snap-lock connectors meet the requirements of protection class IP67 when mated and are suitable for applications requiring protection against dust and liquids. They are available as cable connectors or with moulded cables, but can also be designed as flange connectors. The cable connectors as well as the flange connectors are available in black, red, blue or green. Users can choose between 3-, 4-, 5- or 8-pole versions, which are designed for a rated current between 1A and 3A at 63 - 125V. Most models are available with solder or dip solder termination. More than 500 mating cycles are possible.
General Features| Part no. | 99 9228 090 08 |
|---|

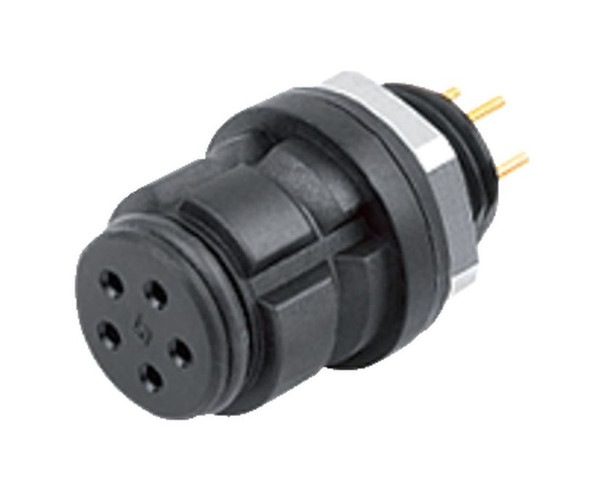

| Connector design | Female panel mount connector |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | snap-in |
|---|
| Termination | THT |
|---|
| Degree of protection | IP67 |
|---|
| Temperature range from/to | -25 °C / 85 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 3.00 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 63 V |
|---|
| Rated impulse voltage | 800 V |
|---|
| Rated current (40 °C) | 1.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 2 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | II |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PA |
|---|
| Contact body material | PA (UL94 HB) black |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 898b55ef-d223-4575-bd54-cc4aa0aed152 |
|---|
