The medical-grade 620 Series, which is IP67 when mated, includes snap-in connectors available in cable and flange versions. Cable and flange connectors are grey-white and users can order 3, 4, 5 or 8 contacts with rated currents between 1 A and 3 A (depending on the number of contacts). Cable connectors have solder connection, flange connectors solder/ dip solder connection. More than 500 mating cycles are possible.
General Features| Part no. | 99 9212 490 04 |
|---|

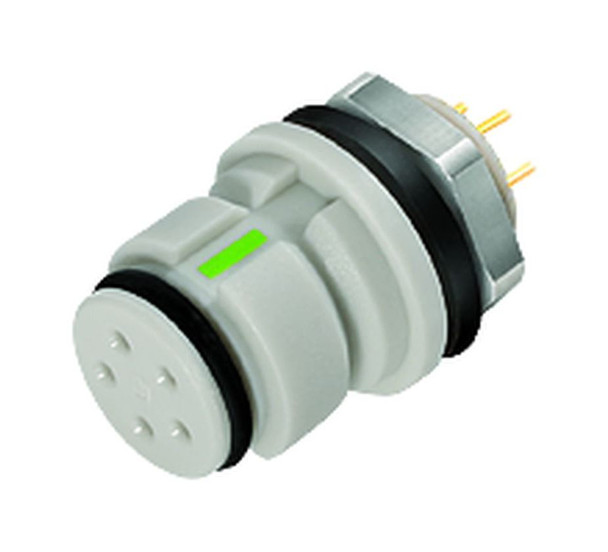

| Connector design | Female panel mount connector |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | snap-in |
|---|
| Termination | THT |
|---|
| Degree of protection | IP67 |
|---|
| Temperature range from/to | -25 °C / 85 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 2.44 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 125 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 2.5 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 2 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | II |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PA |
|---|
| Contact body material | PA (UL94 HB) grey |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | ae733f4b-4c1c-4676-b601-0be967c29127 |
|---|
