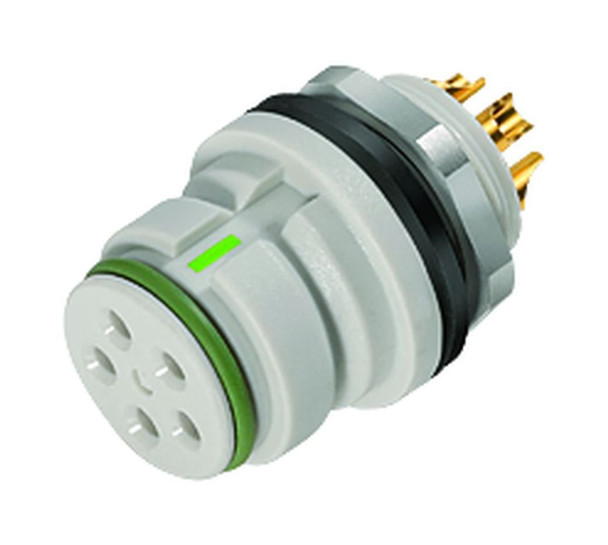

720 Series snap-in miniature circular connectors have 3 to 12 contacts depending on the application. Medical-grade design is DEHP-free, grey-white, similar to RAL 9002, and is available as cable or flange connectors. Other colours can be ordered. The connector system is IP67 rated, the cable connectors have solder terminals, the flange connectors have solder/ dip solder terminals. Users can expect more than 500 mating cycles.
General Features| Part no. | 99 9128 400 08 |
|---|
| Connector design | Female panel mount connector |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | snap-in |
|---|
| Termination | solder |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | max. 0.25 mm² / AWG 24 |
|---|
| Temperature range from/to | -25 °C / 85 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 5.55 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 125 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 2.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 2 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | II |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PUR |
|---|
| Contact body material | PA (UL94 V-0) grey |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 66d38e0f-9787-4ff5-b9a3-d8cdeec8828c |
|---|
