Description

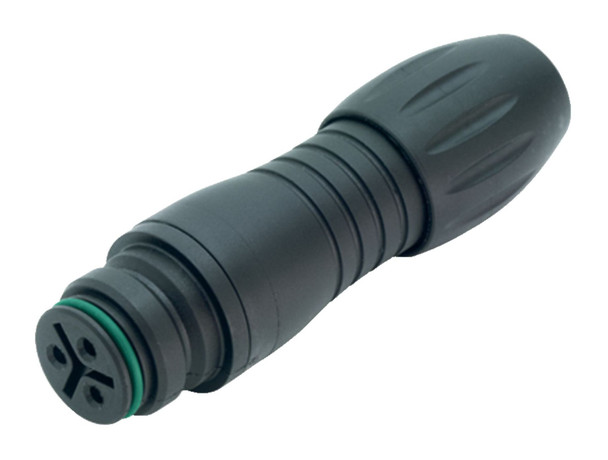

| Part no. | 99 9126 00 08 |
|---|---|
| Connector design | Female cable connector |
| Version | Connector socket straight |
| Connector locking system | snap-in |
| Termination | solder |
| Degree of protection | IP67 |
| Cross-sectional area | max. 0.25 mm² / AWG 24 |
| Cable outlet | 4.0-6.0 mm |
| Temperature range from/to | -25 °C / 85 °C |
| Mechanical operation | > 500 Mating cycles |
| Weight (g) | 9.75 |
| Customs tariff number | 85369010 |
| Rated voltage | 125 V |
|---|---|
| Rated impulse voltage | 1500 V |
| Rated current (40 °C) | 2.0 A |
| Insulation resistance | ? 10¹? ? |
| Pollution degree | 2 |
| Overvoltage category | II |
| Insulating material group | II |
| EMC compliance | unshielded |
| Housing material | PA |
|---|---|
| Contact body material | PA (UL94 V-0) black |
| Contact material | CuSn (bronze) |
| Contact plating | Au (gold) |
| REACH SVHC | CAS 96-45-7 (Imidazolidine-2-thione) CAS 7439-92-1 (Lead) |
| SCIP number | 50d9e190-4736-4987-9450-b0adc4dcdf7b |
| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
|---|
