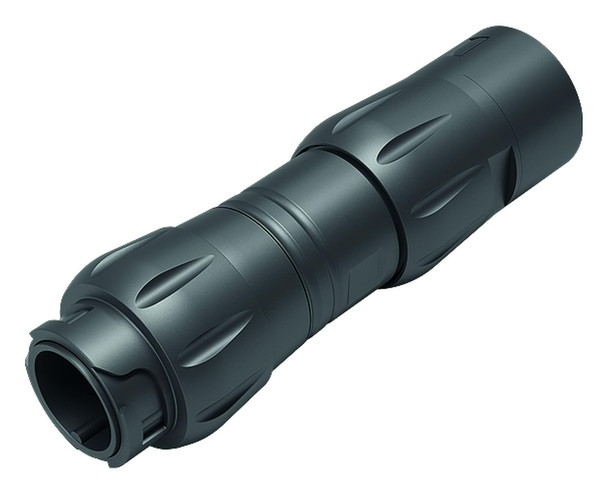

Connectors for harsh environments of the HEC series 696 (Harsh Environment Connectors) are available as square flange and cable versions with integrated protective conduit, which can protect cables up to IP67 and when mated up to IP69K. The connectors are UV-resistant and have VDE and UL approval. The high mechanical load capacity of the products is confirmed by more than 500 mating cycles for the 12-pole version and more than 1000 mating cycles for the 5- and 8-pole versions.

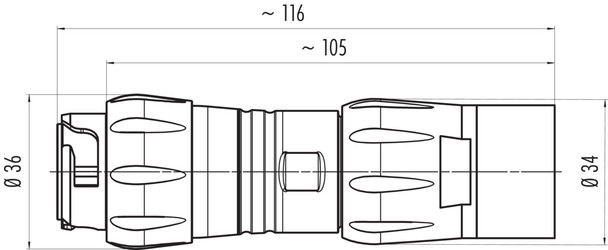

General Features| Part no. | 99 6489 100 05 |
|---|
| Connector design | Male cable connector |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | Bayonet |
|---|
| Termination | crimping (Crimp contacts must be ordered separately) |
|---|
| Degree of protection | IP68/IP69K |
|---|
| Cross-sectional area | 2.50-6.00 mm² / AWG 14-10 |
|---|
| Cable outlet | 7.0-17.0 mm |
|---|
| Temperature range from/to | -40 °C / 100 °C |
|---|
| Mechanical operation | > 1000 Mating cycles |
|---|
| Weight (g) | 69.72 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 600 V |
|---|
| Rated impulse voltage | 6000 V |
|---|
| Rated current (40 °C) | 32.0 A |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | I |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PA |
|---|
| Contact body material | PA |
|---|
| Contact material | depending on crimp contact (accessory) |
|---|
| REACH SVHC | None (No pollutants)
|
|---|
| SCIP number | SCIP-number not available |
|---|
Declarations of conformity| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
|---|
