These circular connectors according to DIN EN 61076-2-106, which are available as straight and angled cable versions as well as flange versions, comply with protection class IP67. The connectors are offered with 2 to 24 contacts with dip solder, crimp, screw clamp, solder and stranded wires and are also available with a moulded cable. Some versions are shieldable and users can expect more than 500 mating cycles. The 8-pole DIN versions are AWG compliant.

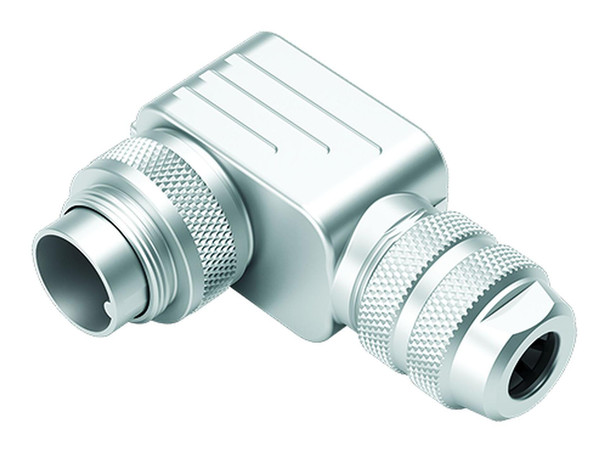

General Features| Part no. | 99 5625 750 07 |
|---|
| Connector design | Male angled connector |
|---|
| Version | Connector pin angled |
|---|
| Connector locking system | screw |
|---|
| Termination | crimping (Crimp contacts must be ordered separately) |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.14-0.75 mm² / AWG 26-20 |
|---|
| Cable outlet | 6.0-8.0 mm |
|---|
| Twistability | 90° (4 coding options) |
|---|
| Temperature range from/to | -40 °C / 100 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 58.05 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 125 V |
|---|
| Rated impulse voltage | 800 V |
|---|
| Rated current (40 °C) | 5.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 1 |
|---|
| Overvoltage category | I |
|---|
| Insulating material group | III |
|---|
| EMC compliance | shieldable |
|---|
| Shield connection | Shielding ring |
|---|
Material| Housing material | CuZn (Brass nickel plated) |
|---|
| Contact body material | PBT (UL94 V-0) |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Ag (silver) |
|---|
| REACH SVHC | CAS 96-45-7 (Imidazolidine-2-thione)
CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 3963548a-fa82-4b94-92cb-48a5876ae563 |
|---|
Declarations of conformity| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
|---|
