These circular connectors according to DIN EN 61076-2-106, which are available as straight and angled cable versions as well as flange versions, comply with protection class IP67. The connectors are offered with 2 to 24 contacts with dip solder, crimp, screw clamp, solder and stranded wires and are also available with a moulded cable. Some versions are shieldable and users can expect more than 500 mating cycles. The 8-pole DIN versions are AWG compliant.

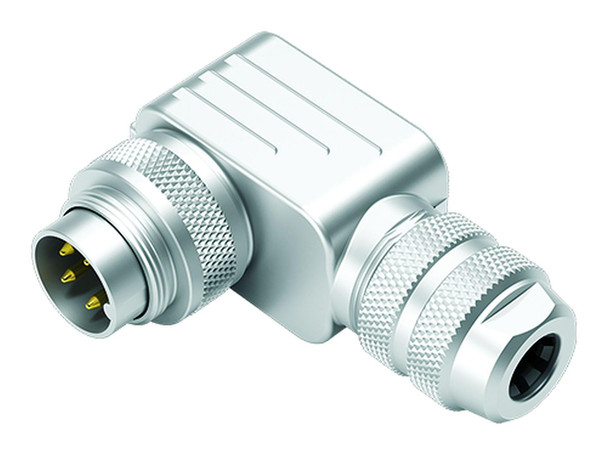

General Features| Part no. | 99 5609 75 04 |
|---|
| Connector design | Male angled connector |
|---|
| Version | Connector pin angled |
|---|
| Connector locking system | screw |
|---|
| Termination | solder |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | max. 0.75 mm² / AWG 18 |
|---|
| Cable outlet | 6.0-8.0 mm |
|---|
| Twistability | 90° (4 coding options) |
|---|
| Temperature range from/to | -30 °C / 95 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 59.11 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 250 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 6.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 1 |
|---|
| Overvoltage category | I |
|---|
| Insulating material group | III |
|---|
| EMC compliance | shieldable |
|---|
| Shield connection | Shielding ring |
|---|
Material| Housing material | CuZn (Brass nickel plated) |
|---|
| Contact body material | PBT (UL94 V-0) |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Ag (silver) |
|---|
| REACH SVHC | CAS 96-45-7 (Imidazolidine-2-thione)
CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 255e8cec-9fec-4eec-bcb6-4b544ea8102b |
|---|
Declarations of conformity| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
|---|
