These circular connectors according to DIN EN 61076-2-106, which are available as straight and angled cable versions as well as flange versions, comply with protection class IP67. The connectors are offered with 2 to 24 contacts with dip solder, crimp, screw clamp, solder and stranded wires and are also available with a moulded cable. Some versions are shieldable and users can expect more than 500 mating cycles. The 8-pole DIN versions are AWG compliant.

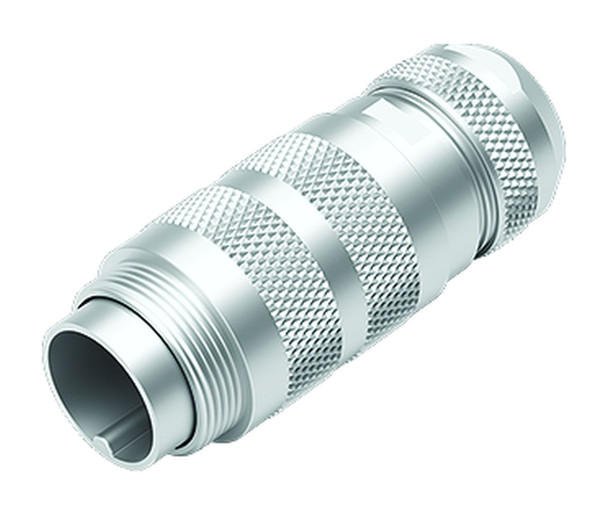

General Features| Part no. | 99 5109 760 04 |
|---|
| Connector design | Male cable connector |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | screw |
|---|
| Termination | crimping |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.14-1.00 mm² / AWG 26-18 |
|---|
| Cable outlet | 4.1-7.8 mm |
|---|
| Temperature range from/to | -40 °C / 100 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Additional information | Short version |
|---|
| Weight (g) | 0.00 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 150 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 6.0 A |
|---|
| Pollution degree | 2 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | III |
|---|
| EMC compliance | shieldable |
|---|
| Shield connection | cable clamp |
|---|
Material| Housing material | CuZn (Brass nickel plated) |
|---|
| Contact body material | PBT |
|---|
| Contact plating | depending on crimp contact (accessory) |
|---|
| Locking material | CuZn (brass) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 6d92b32d-f5b2-4fb2-b518-8e9430d7d2e5 |
|---|
