440 Series push-pull circular connectors are designed for demanding applications that require a fast IP67 connection with the option of EMC shielding. They are available with 3 to 19 contacts in straight cable and flange versions with solder termination. The cable passage is 4 to 8 mm. Depending on the number of contacts, 440 series connectors are designed for a rated current of 3 A to 7 A.

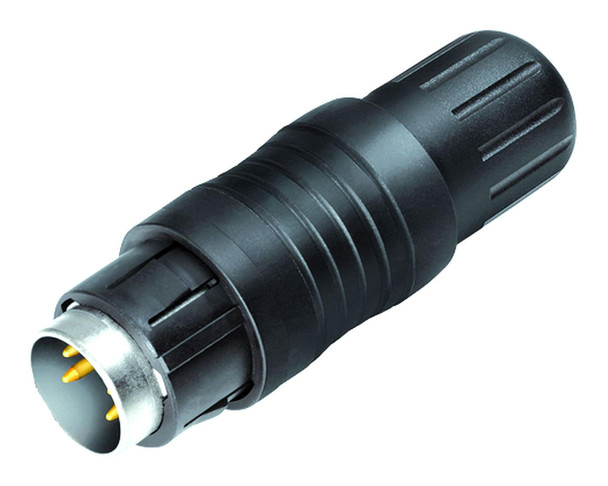

General Features| Part no. | 99 4805 00 03 |
|---|
| Connector design | Male cable connector |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | Push-Pull |
|---|
| Termination | solder |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | max. 0.75 mm² / AWG 18 |
|---|
| Cable outlet | 4.0-8.0 mm |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 1000 Mating cycles |
|---|
| Weight (g) | 23.08 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 250 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 7.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 1 |
|---|
| Overvoltage category | I |
|---|
| Insulating material group | III |
|---|
| EMC compliance | shieldable |
|---|
| Shield connection | Shield clamping |
|---|
Material| Housing material | PA GF 25 |
|---|
| Contact body material | PBT (UL94 V-0) |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | d2ea0b31-e194-4694-9f0f-7a6666d68359 |
|---|
