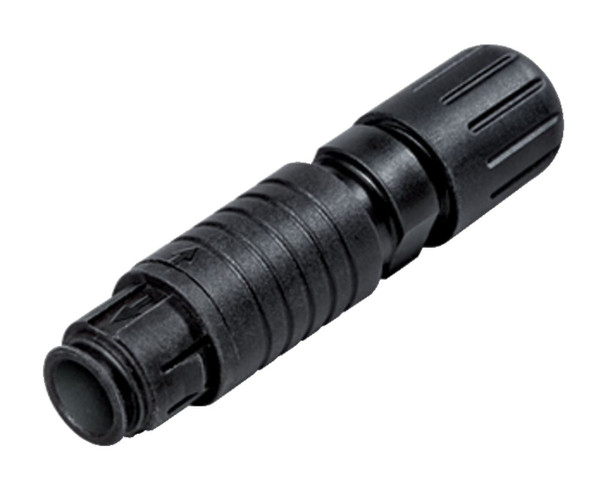

Available with 3, 4 or 5 contacts rated 1A at 125V, the 420 series has a push-pull locking system which, when mated, fulfil IP67.The housing diameter of the cable connector measures just 9.5mm while the panel mount version measures 12.6mm. Mating cycles can be 1000+, wire gange maximum 0.14mm² and termination is solder.
General Features| Part no. | 99 4713 00 05 |
|---|
| Connector design | Male cable connector |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | Micro Push-Pull |
|---|
| Termination | solder |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | max. 0.14 mm² / AWG 26 |
|---|
| Cable outlet | 3.0-4.0 mm |
|---|
| Temperature range from/to | -40 °C / 80 °C |
|---|
| Mechanical operation | > 1000 Mating cycles |
|---|
| Weight (g) | 2.81 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 125 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 1.0 A |
|---|
| Pollution degree | 2 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | II |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PA |
|---|
| Contact body material | PA |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 96-45-7 (Imidazolidine-2-thione)
CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 9afe691d-afe6-46a0-bc08-d8a196a5428b |
|---|
