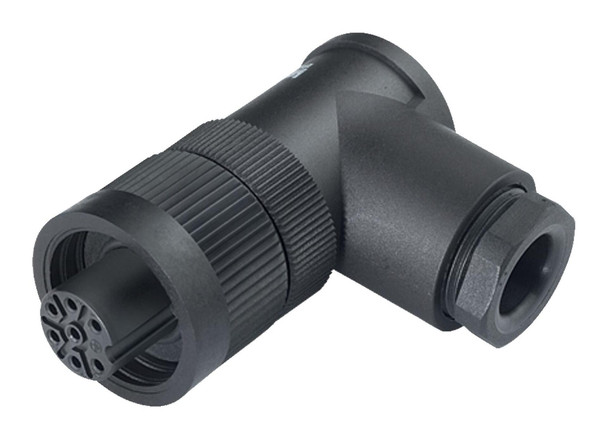

Binder 99-4202-215-07 RD24 Female angled connector, Contacts: 6+PE, 10.0-12.0 mm, unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, ESTI+, VDE, PG 13,5

No reviews yet Write a Review
$16.00
Binder 99-4202-215-07 RD24 Female angled connector, Contacts: 6+PE, 10.0-12.0 mm, unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, ESTI+, VDE, PG 13,5 | American Cable Assemblies
Binder 99-4202-215-07 RD24 Female angled connector, Contacts: 6+PE, 10.0-12.0 mm, unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, ESTI+, VDE, PG 13,5
Binder 99-4202-215-07 RD24 Female angled connector, Contacts: 6+PE, 10.0-12.0 mm, unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, ESTI+, VDE, PG 13,5
SKU:
BN99-4202-215-07
MPN:
99-4202-215-07
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
RD24, series 693, Power Connectors
Numbers of contacts:
6+PE
Termination:
crimping (Crimp contacts must be ordered separately)
$16.00

Frequently Bought Together:

Binder 99-4202-215-07 RD24 Female angled connector, Contacts: 6+PE, 10.0-12.0 mm, unshielded, crimping (Crimp contacts must be ordered separately), IP67, UL, ESTI+, VDE, PG 13,5 | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

Connectors of the 692/693 series have 3+PE (rated current 16 A) or 6+PE (rated current 10 A) contacts, they are available with solder, crimp or screw terminals and moulded cable. With IP67 protection, the series offers straight and angled cable plugs and receptacles as well as flange versions with dimensions of 38mm x 29mm. It has RD24 screw locking, the operating temperature range is between -40 °C and +100 °C and the connection cross-section is AWG 16 or max. AWG 18. The connectors are VDE, SEV and UL approved.
General Features
Part no. 99 4202 215 07
Connector design Female angled connector
Version Connector socket angled
Connector locking system screw
Termination crimping (Crimp contacts must be ordered separately)
Degree of protection IP67
Cross-sectional area click here for more info
Cable outlet 10.0-12.0 mm
Twistability 45° (8 coding options)
Temperature range from/to -40 °C / 100 °C
Mechanical operation > 500 Mating cycles
Weight (g) 36.82
Customs tariff number 85369010

Electrical Parameters
Rated voltage 250 V
Rated impulse voltage 4000 V
Rated current (40 °C) 10 A (8 A UL)
Insulation resistance ? 10¹? ?
Pollution degree 3
Overvoltage category III
Insulating material group III
EMC compliance unshielded
Material
Contact body material PBT (UL94 V-0)
Contact material depending on crimp contact (accessory)
Contact plating Ag (silver)
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
Declarations of conformity
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
