Connectors of the 692/693 series have 3+PE (rated current 16 A) or 6+PE (rated current 10 A) contacts, they are available with solder, crimp or screw terminals and moulded cable. With IP67 protection, the series offers straight and angled cable plugs and receptacles as well as flange versions with dimensions of 38mm x 29mm. It has RD24 screw locking, the operating temperature range is between -40 °C and +100 °C and the connection cross-section is AWG 16 or max. AWG 18. The connectors are VDE, SEV and UL approved.

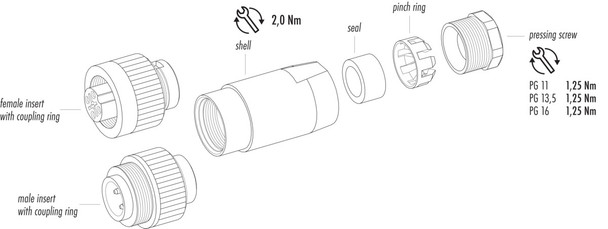

General Features| Part no. | 99 4201 110 07 |
|---|
| Connector design | Male cable connector |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | screw |
|---|
| Termination | crimping (Crimp contacts must be ordered separately) |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | click here for more info |
|---|
| Cable outlet | 8.0-10.0 mm |
|---|
| Temperature range from/to | -40 °C / 100 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 15.18 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 250 V |
|---|
| Rated impulse voltage | 4000 V |
|---|
| Rated current (40 °C) | 10 A (8 A UL) |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Contact body material | PBT (UL94 V-0) |
|---|
| Contact material | depending on crimp contact (accessory) |
|---|
| REACH SVHC | None (No pollutants)
|
|---|
| SCIP number | SCIP-number not available |
|---|
Declarations of conformity| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
|---|
