Description
Note: All Binder product sales are final. Non-cancelable, non-returnable (NCNR).
| Part no. | 99 3730 820 04 |
|---|---|

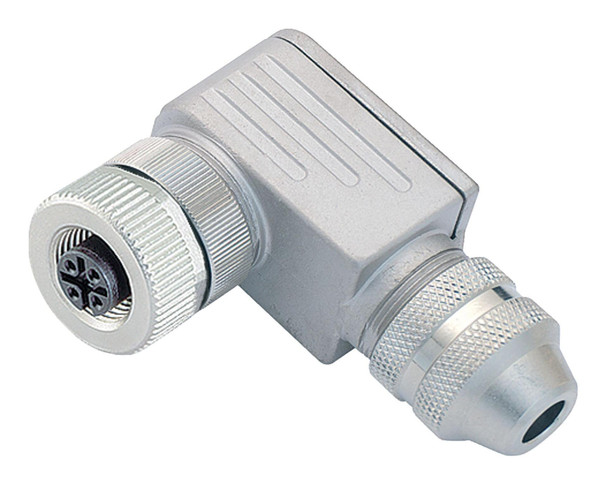

| Connector design | Female angled connector |
| Version | Connector socket angled |
| Connector locking system | screw |
| Termination | screw clamp |
| Degree of protection | IP67 |
| Cross-sectional area | max. 0.75 mm² / AWG 18 |
| Cable outlet | 6.0-8.0 mm |
| Twistability | 90° (4 coding options) |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 66.29 |
| Customs tariff number | 85369010 |
| Rated voltage | 250 V |
|---|---|
| Rated impulse voltage | 2500 V |
| Rated current (40 °C) | 4.0 A |
| Insulation resistance | ? 10¹? ? |
| Pollution degree | 3 |
| Transmission rate | CAT 5 |
| Overvoltage category | II |
| Insulating material group | III |
| EMC compliance | shieldable |
| Shield connection | Shielding ring |
| Housing material | Zinc die-cast nickel-plated |
|---|---|
| Contact body material | PA |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| Locking material | Zinc die-cast nickel-plated |
| REACH SVHC | CAS 96-45-7 (Imidazolidine-2-thione) CAS 7439-92-1 (Lead) |
| SCIP number | 68c1e0d1-3f95-43c1-aefb-d48433c7b056 |
| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
|---|
