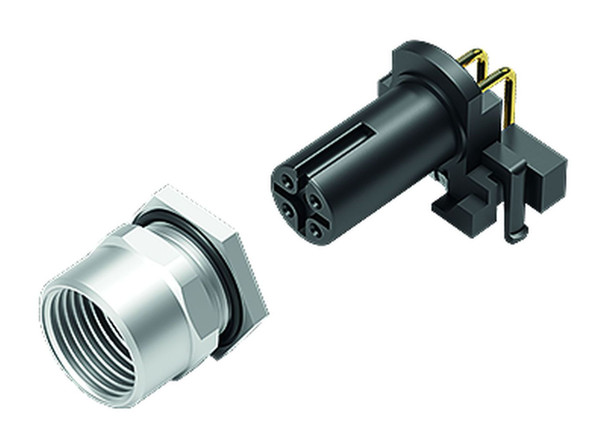

Binder 99-3442-202-05 M12-A Female angled panel mount connector, Contacts: 5, unshielded, THR, IP68, UL, for PCB assembly

No reviews yet Write a Review
$14.92
Binder 99-3442-202-05 M12-A Female angled panel mount connector, Contacts: 5, unshielded, THR, IP68, UL, for PCB assembly | American Cable Assemblies
Binder 99-3442-202-05 M12-A Female angled panel mount connector, Contacts: 5, unshielded, THR, IP68, UL, for PCB assembly
Binder 99-3442-202-05 M12-A Female angled panel mount connector, Contacts: 5, unshielded, THR, IP68, UL, for PCB assembly
SKU:
BN99-3442-202-05
MPN:
99-3442-202-05
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
M12, series 763, Automation Technology - Sensors and Actuators
Numbers of contacts:
5
EMC compliance:
unshielded
$14.92

Frequently Bought Together:

Binder 99-3442-202-05 M12-A Female angled panel mount connector, Contacts: 5, unshielded, THR, IP68, UL, for PCB assembly | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

The A-coded M12 circular connectors are designed for many automation applications, meeting the common requirements of the automation industry. M12 A connectors are available with 3, 4, 5, 8 and 12 contacts with a rated current up to 4A at 250V. Various connection types are available, including crimp connection and moulded, ready-to-connect cable. There are also easy-to-mount flange versions with various connection options such as solder, dip solder and stranded wire. The wide product range is rounded off with Food & Beverage, EMC and LED versions, among others.
General Features
Part no. 99 3442 202 05

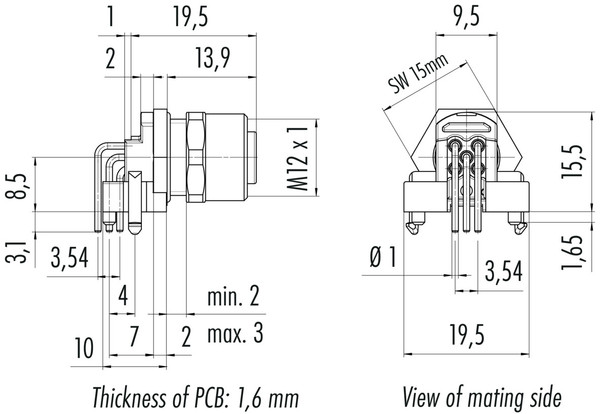

Connector design Female angled panel mount connector
Version Connector socket angled
Connector locking system screw
Termination THR
Degree of protection IP68
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 11.01
Customs tariff number 85369010

Electrical Parameters
Rated voltage 60 V
Rated impulse voltage 1500 V
Rated current (40 °C) 4 A (3 A UL)
Insulation resistance > 10? ?
Pollution degree 3
Insulating material group III
EMC compliance unshielded
Material
Housing material CuZn (Brass nickel plated)
Contact body material PA
Contact material CuSn (bronze)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 084e6db1-5330-4bc7-b242-55debb831d35
