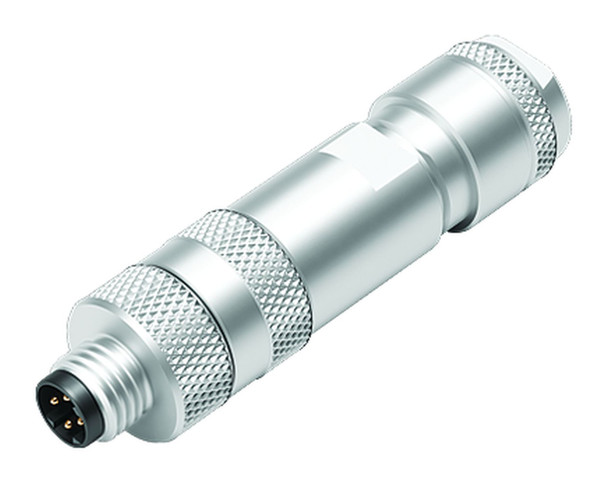

M8 connectors with D-coding of the 818 series according to DIN EN 61076-2-114 are designed for secure Ethernet data transmission up to 100 MBit/s in the network. They have 360° shielding and comply with protection class IP67, have 4 contacts and are available as straight cable connectors and as straight and angled flange connectors. The cable connectors that can be assembled have screw terminals, the flange connectors have dip solder terminals and shielding plate.
General Features| Part no. | 99 3369 600 04 |
|---|
| Connector design | Male cable connector |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | M8x1 |
|---|
| Termination | screw clamp |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.14-0.50 mm² |
|---|
| Cable outlet | 5.0-8.0 mm |
|---|
| Temperature range from/to | -25 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 34.45 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 63 V DC |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 4.0 A |
|---|
| Insulation resistance | > 10? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | II |
|---|
| EMC compliance | shieldable |
|---|
| Shield connection | Iris type spring |
|---|
Material| Housing material | PA |
|---|
| Contact body material | PA black |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| Locking material | CuZn (brass) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | d39684a9-073d-4e37-9636-4f895e983dac |
|---|
