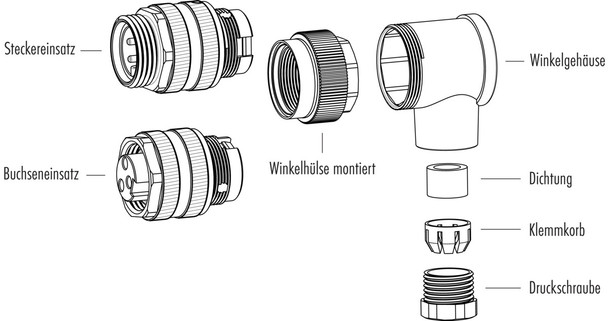

These 7/8 inch connectors with screw locking of the 820/870 series are available as a self-terminating variant with screw terminal connection or as pre-assembled cable connectors with straight or angled cable outlet. They comply with protection class IP67/IP68 . 2+PE, 3+PE and 4+PE contacts are available Flange connectors for housing installation with stranded and dip solder connection complete the portfolio. Furthermore, the series is UL-approved.
General Features| Part no. | 99 2443 62 04 |
|---|

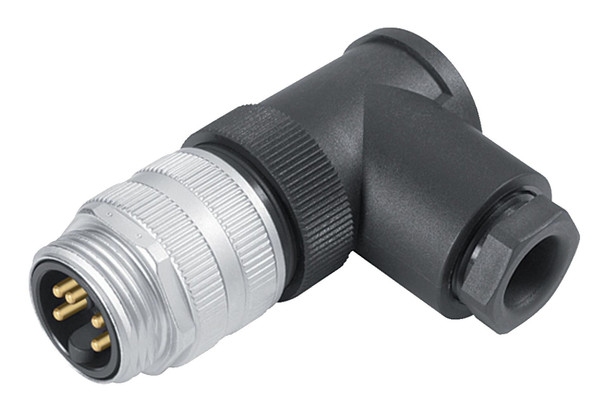

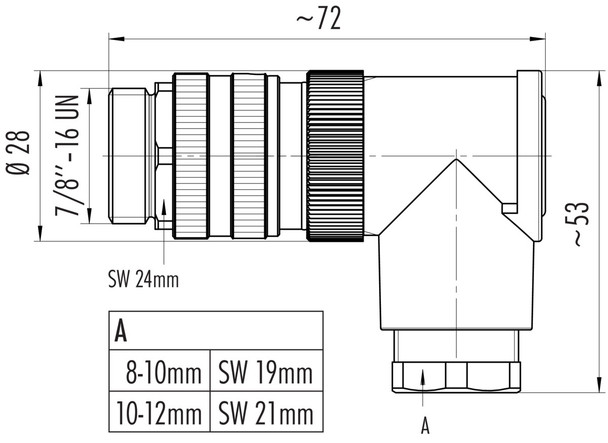

| Connector design | Male angled connector |
|---|
| Version | Connector pin angled |
|---|
| Connector locking system | screw |
|---|
| Termination | screw clamp |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | max. 1.50 mm² / AWG 16 |
|---|
| Cable outlet | 8.0-10.0 mm |
|---|
| Twistability | 45° (8 coding options) |
|---|
| Temperature range from/to | -25 °C / 85 °C |
|---|
| Mechanical operation | > 50 Mating cycles |
|---|
| Weight (g) | 58.90 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 300 V (600 V UL) |
|---|
| Rated impulse voltage | 4000 V |
|---|
| Rated current (40 °C) | 9.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PBT |
|---|
| Contact body material | PUR/PA |
|---|
| Contact material | CuZn (brass) / CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| Locking material | Zinc die-cast nickel-plated |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | a824ea1d-7b18-405d-a895-fb8a9f0c89c1 |
|---|
Declarations of conformity| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
|---|
