Description

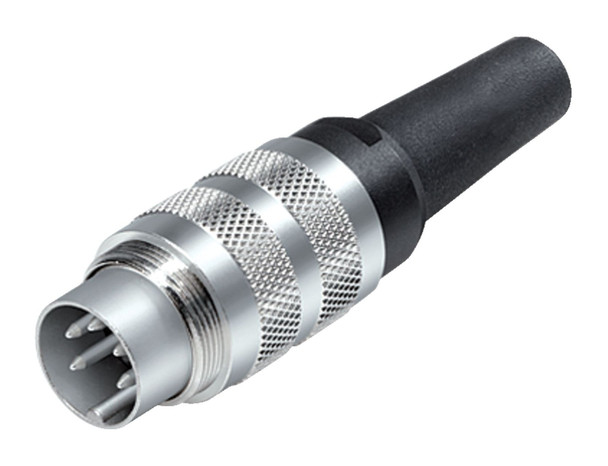

| Part no. | 99 2061 02 08 |
|---|---|
| Connector design | Male cable connector |
| Version | Connector pin straight |
| Connector locking system | screw |
| Termination | solder |
| Degree of protection | IP40 |
| Cross-sectional area | max. 0.75 mm² / AWG 18 |
| Cable outlet | 6.0-8.0 mm |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 500 Mating cycles |
| Weight (g) | 25.79 |
| Customs tariff number | 85369010 |
| Rated voltage | 60 V |
|---|---|
| Rated impulse voltage | 500 V |
| Rated current (40 °C) | 5.0 A |
| Insulation resistance | ? 10¹? ? |
| Pollution degree | 1 |
| Overvoltage category | I |
| Insulating material group | III |
| EMC compliance | shieldable |
| Shield connection | Solder lug |
| Contact body material | PBT (UL94 V-0) |
|---|---|
| Contact material | CuZn (brass) |
| Contact plating | Ag (silver) |
| REACH SVHC | CAS 7439-92-1 (Lead) |
| SCIP number | d57448c6-566f-467a-8970-47fcb5fe2623 |
