M12 circular connectors of the 715/766 series with B-coding have protection class IP67/IP68 and 360° EMC shielding. They are UL-approved and have a freely configurable screw, crimp and cage clamp connection as well as an overmoulded cable of 2m or 5m length as standard. They are available as cable or flange connectors, with screw locking according to DIN EN 61076-2-101.

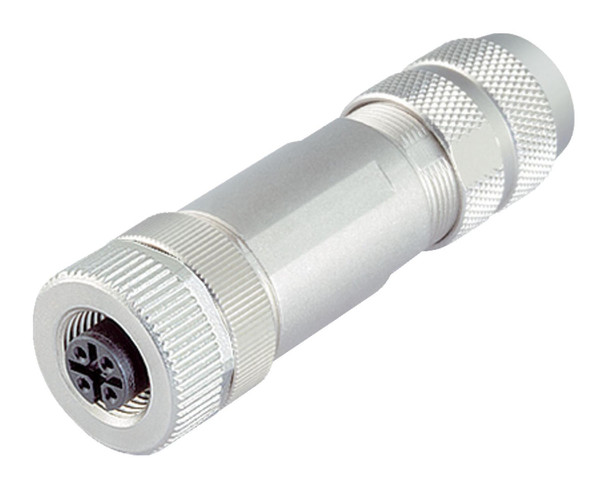

General Features| Part no. | 99 1434 810 04 |
|---|
| Connector design | Female cable connector |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | screw |
|---|
| Termination | crimping (Crimp contacts must be ordered separately) |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.14-1.50 mm² / min. 26 - max. 16 |
|---|
| Cable outlet | 5.0-8.0 mm |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 46.38 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 250 V |
|---|
| Rated impulse voltage | 2500 V |
|---|
| Rated current (40 °C) | 4.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | III |
|---|
| EMC compliance | shieldable |
|---|
| Shield connection | Iris type spring |
|---|
Material| Housing material | Zinc die-cast nickel-plated |
|---|
| Contact body material | PA |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| Locking material | Zinc die-cast nickel-plated |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 12cb08c4-541c-4014-b3a4-67f1f2b6ebfd |
|---|
Declarations of conformity| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
|---|
