The 670 series includes cable plugs and flange sockets. The flange sockets have an IP54 degree of protection when unplugged and an IP67 degree of protection when plugged in. The connectors are available with 5 gold-plated contacts and are designed for a rated current of 2A at 50V. They have a plastic housing, a bayonet lock and a solder or dip solder connection. The connection cross-section is 0.25 mm² with a limit temperature of -25°C to +85°C.

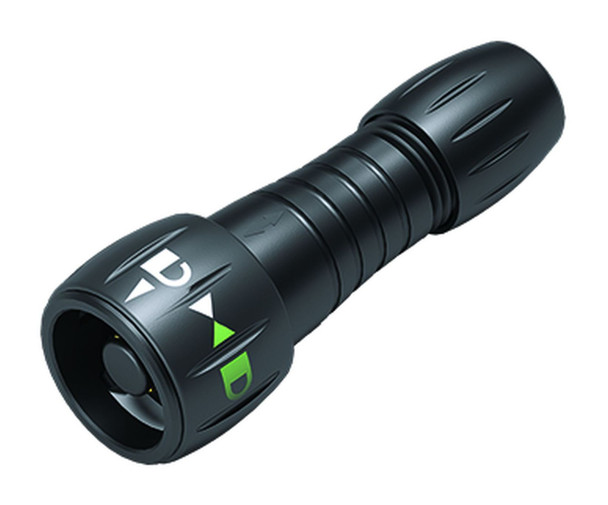

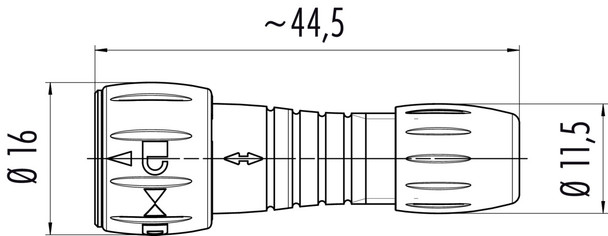

General Features| Part no. | 99 0759 010 05 |
|---|
| Connector design | Male cable connector |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | Bayonet |
|---|
| Termination | solder |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.25 mm² / AWG 24 |
|---|
| Cable outlet | 3.0-5.0 mm |
|---|
| Temperature range from/to | -25 °C / 85 °C |
|---|
| Mechanical operation | > 1000 Mating cycles |
|---|
| Weight (g) | 4.44 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 50 V |
|---|
| Rated impulse voltage | 500 V |
|---|
| Rated current (40 °C) | 2.0 A |
|---|
| Pollution degree | 2 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | II |
|---|
Material| Housing material | PA |
|---|
| Contact body material | PA |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | bfeaaeba-ef26-4742-b70f-c783746fdf45 |
|---|
