RD30 power connectors of the 694 series with screw clamp and solder termination are available as straight and angled cable connectors and 44.45 x 44.5 mm square flange versions. The connectors are available with 5 (4+PE), 13 (12+PE) and 24 contacts with a rated current of 3 A (125 V), 6 A (250 V) and 20 A (400 V), depending on the number of contacts. They conform to IP65 with an operating temperature range from -40 °C to +100 °C. Connection cross-sections from AWG 14 to AWG 24 are possible. Many connectors are VDE and SEV approved.

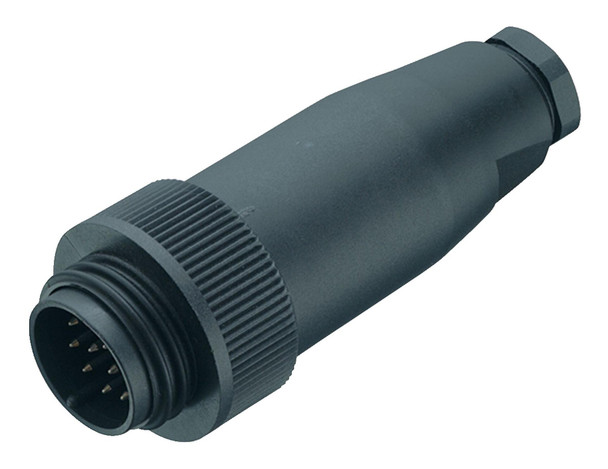

General Features| Part no. | 99 0717 03 13 |
|---|
| Connector design | Male cable connector |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | screw |
|---|
| Termination | solder |
|---|
| Degree of protection | IP65 |
|---|
| Cross-sectional area | max. 1.00 mm² / AWG 17 |
|---|
| Cable outlet | 14.0-18.0 mm |
|---|
| Temperature range from/to | -40 °C / 100 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 72.61 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 250 V |
|---|
| Rated impulse voltage | 4000 V |
|---|
| Rated current (40 °C) | 6.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PA |
|---|
| Contact body material | PA (UL94 HB) |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Ag (silver) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 978c5b88-3695-42cd-b71d-f7360abc14b7 |
|---|
