RD30 power connectors of the 694 series with screw clamp and solder termination are available as straight and angled cable connectors and 44.45 x 44.5 mm square flange versions. The connectors are available with 5 (4+PE), 13 (12+PE) and 24 contacts with a rated current of 3 A (125 V), 6 A (250 V) and 20 A (400 V), depending on the number of contacts. They conform to IP65 with an operating temperature range from -40 °C to +100 °C. Connection cross-sections from AWG 14 to AWG 24 are possible. Many connectors are VDE and SEV approved.
General Features| Part no. | 99 0711 00 05 |
|---|

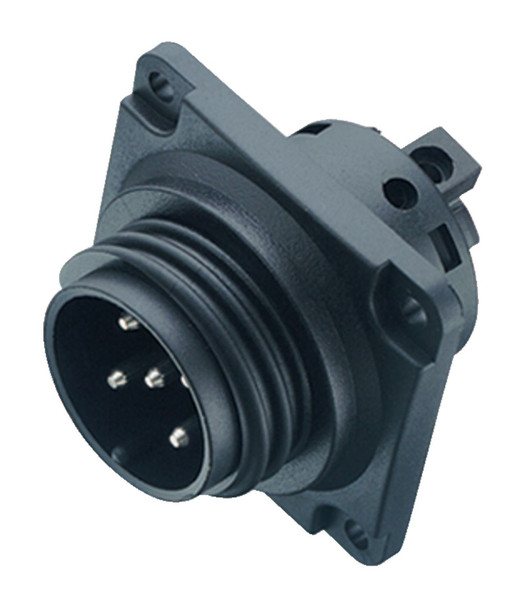

| Connector design | Male panel mount connector |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | screw |
|---|
| Termination | screw clamp |
|---|
| Degree of protection | IP65 |
|---|
| Cross-sectional area | 2.50 mm² / AWG 14 |
|---|
| Temperature range from/to | -40 °C / 100 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 39.47 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 400 V |
|---|
| Rated impulse voltage | 6000 V |
|---|
| Rated current (40 °C) | 20.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PA |
|---|
| Contact body material | PA (UL94 HB) |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Ag (silver) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 560cfc9a-82f4-4fe8-a4cb-f11861c7f50c |
|---|
