Description
| Part no. | 99 0699 58 05 |
|---|---|

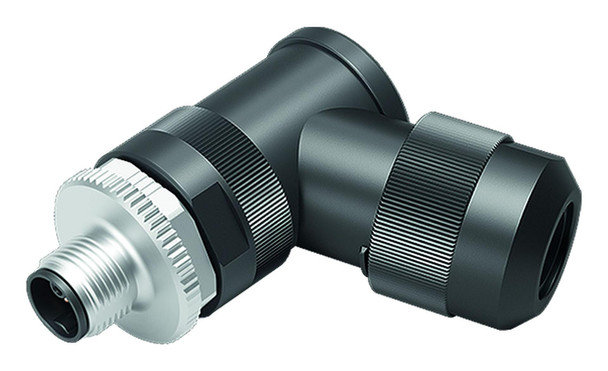

| Connector design | Male angled connector |
| Version | Connector pin angled |
| Connector locking system | screw |
| Termination | screw clamp |
| Degree of protection | IP67 |
| Cross-sectional area | max. 1.50 mm² with ferrule / max. 2.50 mm² without ferrule / AWG 16 with wire-end ferrule / AWG 14 without wire-end ferrule |
| Cable outlet | 8.0-13.0 mm |
| Twistability | 72° (5 coding options) |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 46.11 |
| Customs tariff number | 85369010 |
| Rated voltage | 630 V |
|---|---|
| Rated impulse voltage | 6000 V |
| Rated impulse voltage UL | 6000 V |
| Rated current (40 °C) | 12.0 A |
| Insulation resistance | > 10¹? ? |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| EMC compliance | unshielded |
| Housing material | PA |
|---|---|
| Contact body material | PA (UL94 V-0) |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| REACH SVHC | CAS 7439-92-1 (Lead) |
| SCIP number | 3b3883bc-f901-493d-8ef7-9c16c0151544 |
| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
|---|
