Connectors of the 824 series with screw locking according to DIN EN 61076-2-111 are K-coded for AC applications. They have 4+PE contacts with a rated current of 12A at 630VAC. These connectors are available in a terminated version, both straight and right-angled. Flange connectors are available with stranded wires.

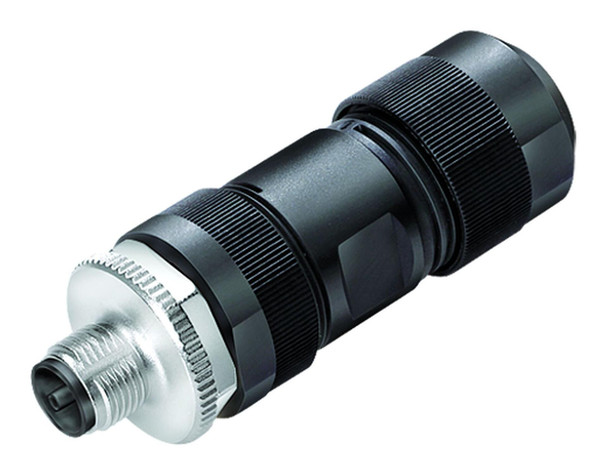

General Features| Part no. | 99 0699 37 05 |
|---|
| Connector design | Male cable connector |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | screw |
|---|
| Termination | screw clamp |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | max. 1.50 mm² with ferrule / max. 2.50 mm² without ferrule / AWG 16 with wire-end ferrule / AWG 14 without wire-end ferrule |
|---|
| Cable outlet | 8.0-13.0 mm |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Additional information | UL 2237 in preparation
with PE connection |
|---|
| Weight (g) | 48.73 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 630 V |
|---|
| Rated impulse voltage | 6000 V |
|---|
| Rated impulse voltage UL | 6000 V |
|---|
| Rated current (40 °C) | 12.0 A |
|---|
| Insulation resistance | > 10¹? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | I |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PA |
|---|
| Contact body material | PA (UL94 V-0) |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | b2a59a51-b8a2-4df9-8dd7-462f285b660a |
|---|
