Connectors of the 814 series with screw locking according to DIN EN 61076-2-111 are S-coded for AC applications. They have 2+PE and 3+PE contacts with a rated current of 12A at 630VAC. These connectors are available in straight and angled cable versions, with screw terminal connection. The flange versions are available with screw terminals as well as with stranded wires.
General Features| Part no. | 99 0690 58 04 |
|---|

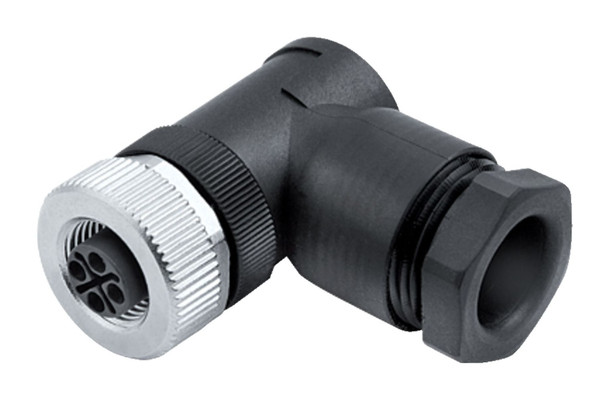

| Connector design | Female angled connector |
|---|
| Version | Connector socket angled |
|---|
| Connector locking system | screw |
|---|
| Termination | screw clamp |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | max. 1.50 mm² with ferrule / max. 2.50 mm² without ferrule / AWG 16 with wire-end ferrule / AWG 14 without wire-end ferrule |
|---|
| Cable outlet | 8.0-10.0 mm |
|---|
| Twistability | 90° (4 coding options) |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 27.50 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 630 V |
|---|
| Rated impulse voltage | 6000 V |
|---|

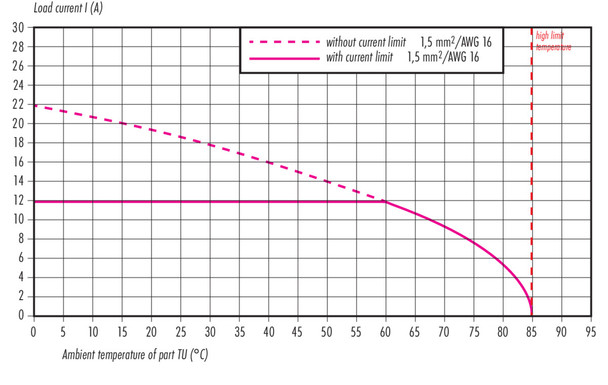

| Rated current (40 °C) | 12.0 A |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PA |
|---|
| Contact body material | PA |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 8907a9ca-b735-4e7a-8809-7683fa6ccd90 |
|---|
Declarations of conformity| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
|---|
