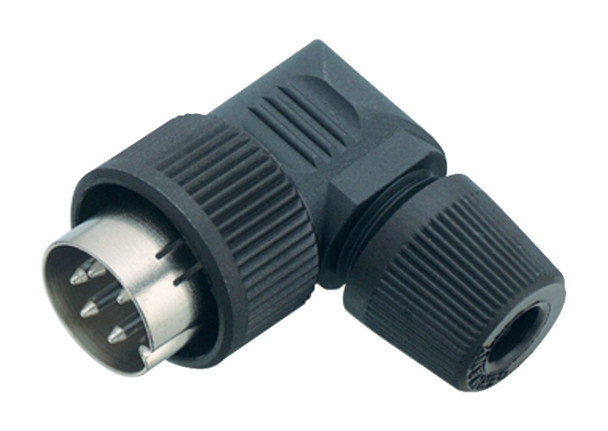

These bayonet cable and flange connectors with IP40 protection are available with 2 to 24 contacts with a rated current of 1 A to 7 A (depending on the number of contacts). The straight and angled cable and flange plugs and receptacles have solder connections. Users can expect more than 500 mating cycles from these 678 series connectors.
General Features| Part no. | 99 0645 70 08 |
|---|
| Connector design | Male angled connector |
|---|
| Version | Connector pin angled |
|---|
| Connector locking system | Bayonet |
|---|
| Termination | solder |
|---|
| Degree of protection | IP40 |
|---|
| Cross-sectional area | max. 0.75 mm² / AWG 18 |
|---|
| Cable outlet | 4.0-6.0 mm |
|---|
| Twistability | not rotatable |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 12.94 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 60 V |
|---|
| Rated impulse voltage | 500 V |
|---|
| Rated current (40 °C) | 5.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 1 |
|---|
| Overvoltage category | I |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PA |
|---|
| Contact body material | PBT (UL94 V-0) |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Ag (silver) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | edb79d9e-eed9-4644-b0d5-85a4028eb16a |
|---|
