Connectors of the 823 series with screw locking according to DIN EN 61076-2-111 are L-coded for DC applications. L-coded versions have 4+FE contacts with a rated current of 12A/ 16A at 63VDC. The straight and angled cable connectors have screw terminal connection. Flanged connectors are available with dip solder terminals as well as with stranded wires.

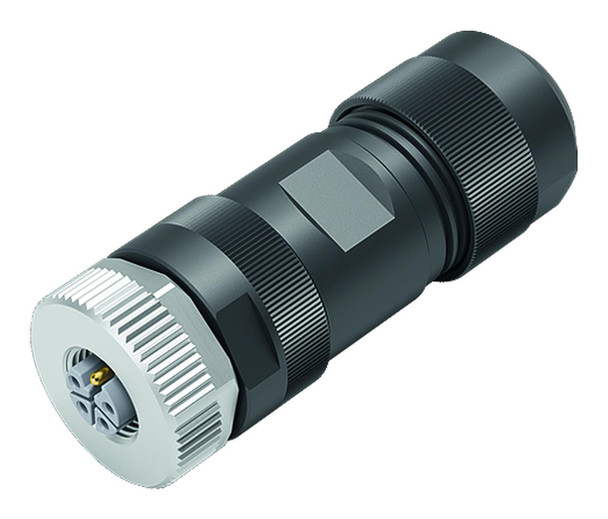

General Features| Part no. | 99 0640 37 05 |
|---|
| Connector design | Female cable connector |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | screw |
|---|
| Termination | screw clamp |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | max. 1.50 mm² with ferrule / max. 2.50 mm² without ferrule / AWG 16 with wire-end ferrule / AWG 14 without wire-end ferrule |
|---|
| Cable outlet | 8.0-13.0 mm |
|---|
| Temperature range from/to | -40 °C / 105 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Additional information | UL 2237 in preparation
with PE connection |
|---|
| Weight (g) | 55.93 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 63 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated impulse voltage UL | 1500 V |
|---|
| Rated current (40 °C) | 12 A (at 1.5 mm²/AWG 16) / 16 A (at 2.5 mm²/AWG 14) |
|---|
| Insulation resistance | > 10¹? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | III |
|---|
| Insulating material group | I |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PA |
|---|
| Contact body material | PA (UL94 V-0) |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 36214d79-4221-4a18-a4b5-9d7163c09a17 |
|---|
