The A-coded M12 circular connectors are designed for many automation applications, meeting the common requirements of the automation industry. M12 A connectors are available with 3, 4, 5, 8 and 12 contacts with a rated current up to 4A at 250V. Various connection types are available, including crimp connection and moulded, ready-to-connect cable. There are also easy-to-mount flange versions with various connection options such as solder, dip solder and stranded wire. The wide product range is rounded off with Food & Beverage, EMC and LED versions, among others.

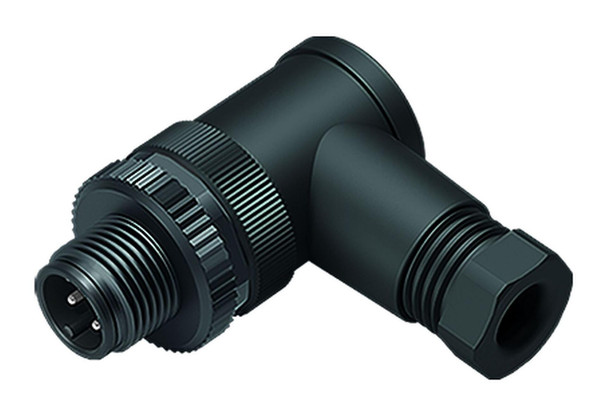

General Features Part no. | 99 0437 69 05 |
---|
Connector design | Male angled connector |
---|
Version | Connector pin angled |
---|
Connector locking system | screw |
---|
Termination | screw clamp |
---|
Degree of protection | IP67 |
---|
Cross-sectional area | max. 0.75 mm² / AWG 18 |
---|
Cable outlet | 6.0-8.0 mm |
---|
Twistability | 90° (4 coding options) |
---|
Temperature range from/to | -40 °C / 85 °C |
---|
Mechanical operation | > 50 Mating cycles |
---|
Weight (g) | 18.89 |
---|
Customs tariff number | 85369010 |
---|
Electrical Parameters Rated voltage | 60 V |
---|
Rated impulse voltage | 1500 V |
---|
Rated current (40 °C) | 4 A (3 A UL) |
---|
Insulation resistance | > 10? ? |
---|
Pollution degree | 3 |
---|
Overvoltage category | II |
---|
Insulating material group | III |
---|
EMC compliance | unshielded |
---|
Material Housing material | PA |
---|
Contact body material | PA |
---|
Contact material | CuZn (brass) |
---|
Contact plating | CuSnZn (Optalloy) |
---|
Locking material | PA |
---|
REACH SVHC | CAS 96-45-7 (Imidazolidine-2-thione) CAS 7439-92-1 (Lead)
|
---|
SCIP number | b99d325a-0982-4cdb-b43b-77062e1c51c8 |
---|
Declarations of conformity Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
---|
