M12 circular connectors of the 715/766 series with B-coding have protection class IP67/IP68 and 360° EMC shielding. They are UL-approved and have a freely configurable screw, crimp and cage clamp connection as well as an overmoulded cable of 2m or 5m length as standard. They are available as cable or flange connectors, with screw locking according to DIN EN 61076-2-101.

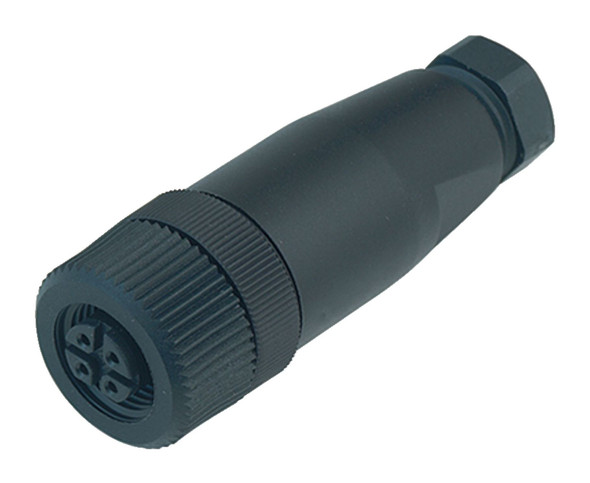

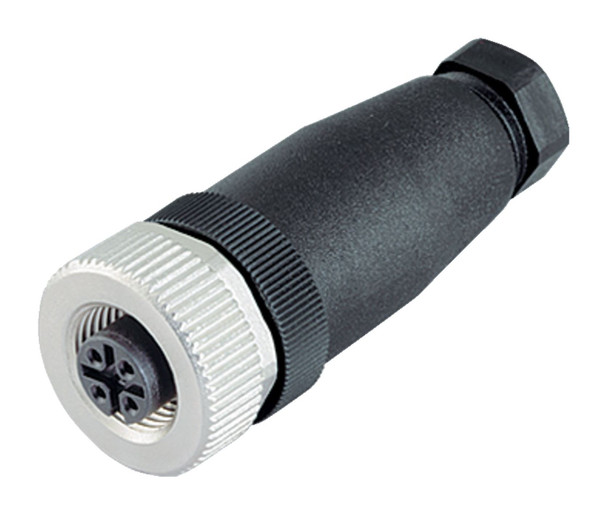

General Features| Part no. | 99 0430 25 04 |
|---|
| Connector design | Female cable connector |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | screw |
|---|
| Termination | screw clamp |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | max. 0.75 mm² / AWG 18 |
|---|
| Cable outlet | 4.0-6.0 mm |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 50 Mating cycles |
|---|
| Weight (g) | 23.00 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 60 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 4.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PA |
|---|
| Contact body material | PA |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | CuSnZn (Optalloy) |
|---|
| Locking material | Zinc die-cast nickel-plated |
|---|
| REACH SVHC | CAS 96-45-7 (Imidazolidine-2-thione)
CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 40f129ce-0f5d-4009-bbfa-66d8d7f733ef |
|---|
Declarations of conformity| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
|---|
