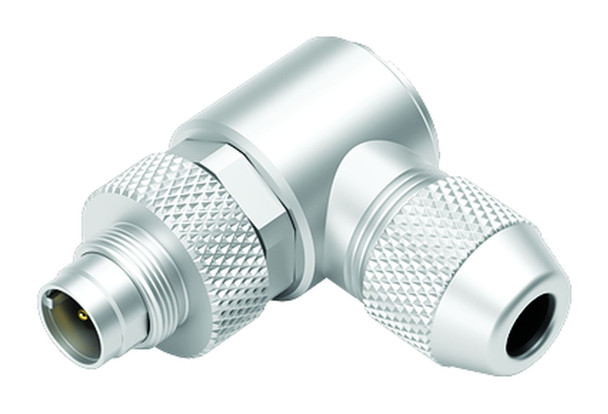

These subminiature M9 connectors are available with 2 to 8 contacts for panel mounting or as cable connectors where binder also offers moulded versions. Both versions are shieldable. Cable connectors feature solder termination while the panel mount versions are available with solder and dip solder termination. Degree of protection is IP67 with an operating temperature range is -40°C to +85°C.
General Features| Part no. | 99 0409 75 04 |
|---|
| Connector design | Male angled connector |
|---|
| Version | Connector pin angled |
|---|
| Connector locking system | screw |
|---|
| Termination | solder |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | max. 0.25 mm² / AWG 24 |
|---|
| Cable outlet | 3.5-5.0 mm |
|---|
| Twistability | 180° (2 coding options) |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 24.66 |
|---|
| Customs tariff number | 85369010 |
|---|
Electrical Parameters| Rated voltage | 125 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 3,0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 1 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | III |
|---|
| EMC compliance | shieldable |
|---|
| Shield connection | Shielding ring |
|---|
Material| Contact body material | PBT (UL94 V-0) |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| Locking material | CuZn (brass) |
|---|
| REACH SVHC | CAS 96-45-7 (Imidazolidine-2-thione)
CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | ef554881-b6c5-4490-b9e0-3c5876abcdf8 |
|---|
