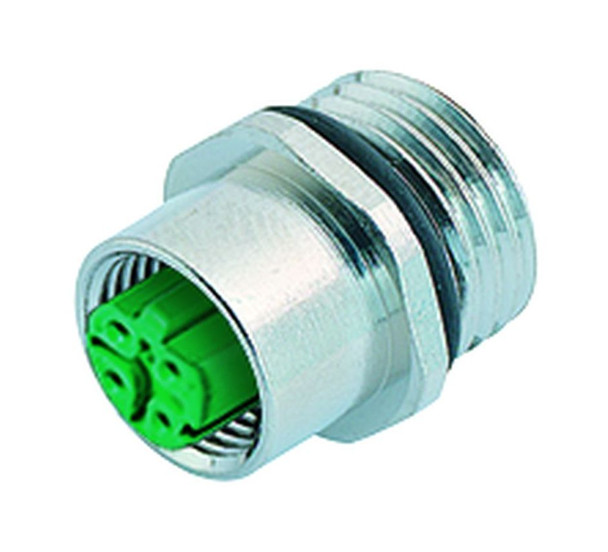

M12 connectors with D-coding of the 825/876 series for high-performance applications such as PROFINET and Ethernet have screw/cutting terminal connection and reach Cat5. Cable connectors are also available with moulded cable, flange connectors have solder and dip solder connections. The connectors have excellent shielding and achieve IP67 protection. Shielded M12-D to RJ45 adapters are available straight and angled.
General Features Part no. | 86 0236 0002 00404 |
---|
Connector design | Female panel mount connector |
---|
Version | Connector socket straight |
---|
Connector locking system | screw |
---|
Termination | solder |
---|
Degree of protection | IP67 |
---|
Cross-sectional area | 0.14-0.25 mm² / AWG 22/AWG 24 |
---|
Temperature range from/to | -40 °C / 85 °C |
---|
Mechanical operation | > 100 Mating cycles |
---|
Weight (g) | 9.37 |
---|
Customs tariff number | 85369010 |
---|
Electrical Parameters Rated voltage | 250 V |
---|
Rated impulse voltage | 2500 V |
---|
Rated current (40 °C) | 2 A (0.14 mm²)/4 A |
---|
Insulation resistance | ? 3 m? |
---|
Pollution degree | 3 |
---|
Overvoltage category | II |
---|
Insulating material group | II |
---|
Material Housing material | Zinc die-cast nickel-plated |
---|
Contact body material | PA66 (UL94 V0) |
---|
Contact material | CuSn (bronze) |
---|
Contact plating | Au (gold) |
---|
REACH SVHC | CAS 7439-92-1 (Lead)
|
---|
SCIP number | 87915a0c-ae38-4bd3-a592-1645b9aa024f |
---|
