These snap-in connector series can be supplied with up to 5 contacts rated 3A at 60V. Several versions are available including cable connectors with or without strain relief, connectors moulded to cables and panel mount connectors with solder and dip-solder termination. Cable outlet size is 3-5mm and users can expect more than 100 mating cycles.

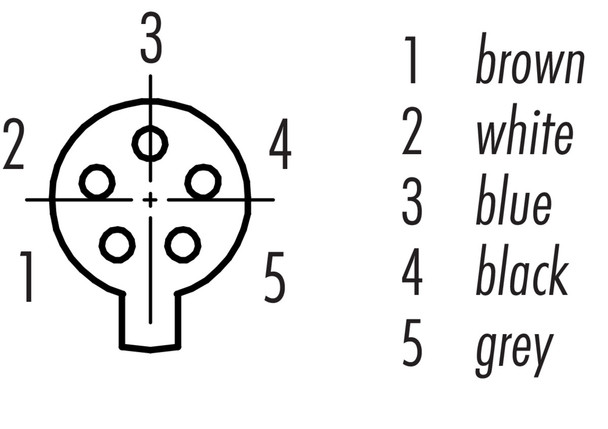

General Features| Part no. | 79 9006 15 05 |
|---|
| Connector design | Female cable connector |
|---|
| Cable length | 5 m |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | snap-in |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP40 |
|---|
| Cross-sectional area | 0.25 mm² / AWG 24 |
|---|
| Temperature range from/to | -25 °C / 70 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 187.00 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 60 V |
|---|
| Rated impulse voltage | 800 V |
|---|
| Rated current (40 °C) | 3,0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 1 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PUR |
|---|
| Contact body material | PA |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 00ea4d81-108d-40f5-921c-12bef51430f1 |
|---|
Cable Data| Structure of the cable |
| Cable diameter | 5.0 mm |
|---|
| Cross section | 5 x 0.25 mm² |
|---|
| Sheath material | PVC |
|---|
| Single-lead insulation | PVC |
|---|
| Single-lead structure | 14 x 0.15 mm |
|---|
| Cable color | black |
|---|
| Electrical properties |
| Conductor resistance | 79.9 ?/Km (20°C) |
|---|
| Mechanical properties |
| Bending radius, fixed cable | 5 x Ø |
|---|
| Bending radius, moving cable | ? 10 x Ø |
|---|
| Thermal properties |
| Temperature range cable in move from/to | -5 °C / 70 °C |
|---|
| Temperature range cable fixed from/to | -25 °C / 70 °C |
|---|
| Other features |
| Halogen free | no |
|---|
