These circular connectors according to DIN EN 61076-2-106, which are available as straight and angled cable versions as well as flange versions, comply with protection class IP67. The connectors are offered with 2 to 24 contacts with dip solder, crimp, screw clamp, solder and stranded wires and are also available with a moulded cable. Some versions are shieldable and users can expect more than 500 mating cycles. The 8-pole DIN versions are AWG compliant.
General Features| Part no. | 79 6271 200 08 |
|---|

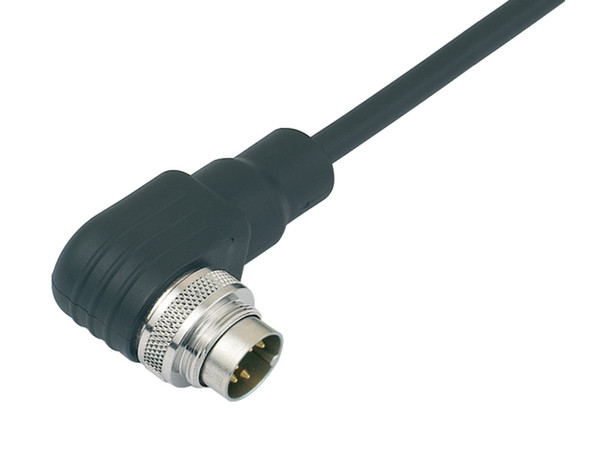

| Connector design | Male angled connector |
|---|
| Cable length | 2 m |
|---|
| Version | Connector pin angled |
|---|
| Connector locking system | screw |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.25 mm² / AWG 24 |
|---|
| Temperature range from/to | -25 °C / 70 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 141.90 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 60 V |
|---|
| Rated impulse voltage | 500 V |
|---|
| Rated current (40 °C) | 3,0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 1 |
|---|
| Overvoltage category | I |
|---|
| Insulating material group | III |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PUR |
|---|
| Contact body material | PBT (UL94 V-0) |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 5a5e1e39-b893-4683-9cd4-114b635943e3 |
|---|
Cable Data| Structure of the cable |
| Cable diameter | 5.7 mm |
|---|
| Cross section | 8 x 0.25 mm² |
|---|
| Sheath material | PUR |
|---|
| Single-lead insulation | PVC Y12 |
|---|
| Single-lead structure | 32 x 0.10 mm |
|---|
| Cable color | black |
|---|
| Electrical properties |
| Conductor resistance | 79.9 ?/Km (20°C) |
|---|
| Mechanical properties |
| Bending radius, fixed cable | ? 5 x Ø |
|---|
| Bending radius, moving cable | ? 12 x Ø |
|---|
| Thermal properties |
| Temperature range cable in move from/to | -5 °C / 70 °C |
|---|
| Temperature range cable fixed from/to | -25 °C / 70 °C |
|---|
| Other features |
| Halogen free | no |
|---|
