Easy-to-mount M8 cable connectors to DIN EN 61076-2-104 in protection class IP65/67, unshielded and shielded versions with 360° shielding, iris spring and shielding rings ensure reliable EMC shielding. Rated current 1A to 4A and rated voltage 30V to 60V depending on the number of contacts. There are solder and screw terminals. The flange connectors have solder and dip solder connections or stranded wires.
General Features| Part no. | 79 3414 15 03 |
|---|

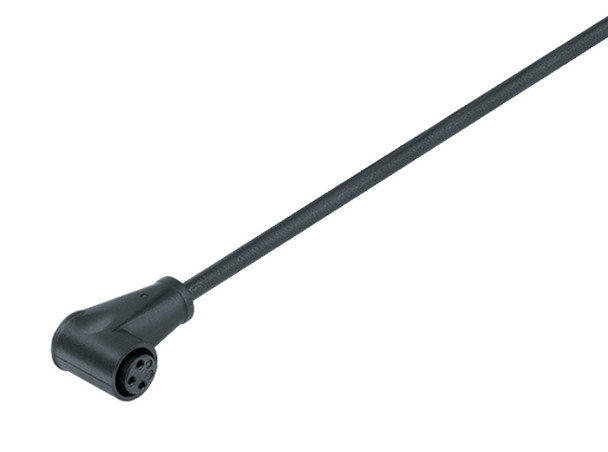

| Connector design | Female angled connector |
|---|
| Version | Connector socket angled |
|---|
| Connector locking system | snap-in |
|---|
| Weight (g) | 67.50 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| EMC compliance | unshielded |
|---|
Material| Housing material | PUR |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | f4fd05d7-6fde-4822-b511-80374756cbdb |
|---|
Cable Data| Structure of the cable |
| Cable diameter | 5.0 mm |
|---|
| Cross section | 3 x 0.14 mm² |
|---|
| Sheath material | PUR |
|---|
| Single-lead insulation | PVC |
|---|
| Single-lead structure | 7 x 0.25 mm |
|---|
| Cable color | black |
|---|
| Electrical properties |
| Conductor resistance | 148 ?/Km (20°C) |
|---|
| Mechanical properties |
| Travel distance, horizontal | 2 m/s² -> 3 m |
|---|
| Thermal properties |
| Temperature range cable in move from/to | -5 °C / 70 °C |
|---|
| Temperature range cable fixed from/to | -25 °C / 70 °C |
|---|
| Other features |
| Halogen free | no |
|---|
