Easy-to-mount M8 cable connectors to DIN EN 61076-2-104 in protection class IP65/67, unshielded and shielded versions with 360° shielding, iris spring and shielding rings ensure reliable EMC shielding. Rated current 1A to 4A and rated voltage 30V to 60V depending on the number of contacts. There are solder and screw terminals. The flange connectors have solder and dip solder connections or stranded wires.
General Features| Part no. | 79 3410 15 03 |
|---|
| Connector design | Female cable connector |
|---|
| Cable length | 5 m |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | snap-in |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP65 |
|---|
| Cross-sectional area | 0.14 mm² / AWG 26 |
|---|
| Temperature range from/to | -40 °C / 70 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 63.00 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 60 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 2.0 A |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | II |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PUR |
|---|
| Contact body material | PUR |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|

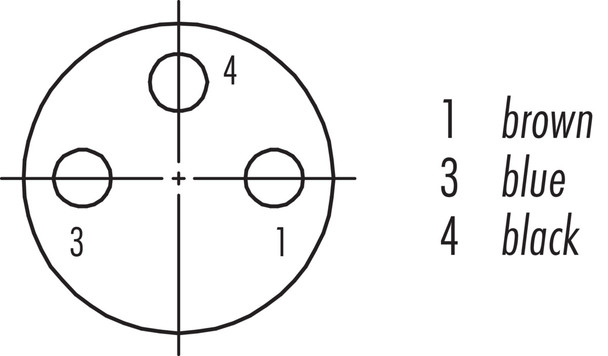

|---|
| SCIP number | 9a0e4a2c-fde1-4f69-b8c5-55cf29a0d492 |
|---|
Cable Data| Structure of the cable |
| Cable diameter | 3.1 mm |
|---|
| Cross section | 3 x 0.14 mm² |
|---|
| Sheath material | PUR |
|---|
| Single-lead insulation | PVC |
|---|
| Single-lead structure | 18 x 0.10 mm |
|---|
| Cable color | black |
|---|
| Electrical properties |
| Conductor resistance | 148 ?/Km (20°C) |
|---|
| Mechanical properties |
| Bending radius, fixed cable | ? 5 x Ø |
|---|
| Bending radius, moving cable | ? 12 x Ø |
|---|
| Bending cycles | > 1 million |
|---|
| Permitted acceleration | 2 m/s² |
|---|
| Travel distance, horizontal | 2 m/s² -> 3 m |
|---|
| Travel speed | at 5 m horizontal path.-> 50 m/min |
|---|
| Thermal properties |
| Temperature range cable in move from/to | -5 °C / 80 °C |
|---|
| Temperature range cable fixed from/to | -25 °C / 80 °C |
|---|
| Other features |
| Halogen free | no |
|---|
