Easy-to-mount M8 cable connectors to DIN EN 61076-2-104 in protection class IP65/67, unshielded and shielded versions with 360° shielding, iris spring and shielding rings ensure reliable EMC shielding. Rated current 1A to 4A and rated voltage 30V to 60V depending on the number of contacts. There are solder and screw terminals. The flange connectors have solder and dip solder connections or stranded wires.
General Features| Part no. | 79 3409 05 03 |
|---|

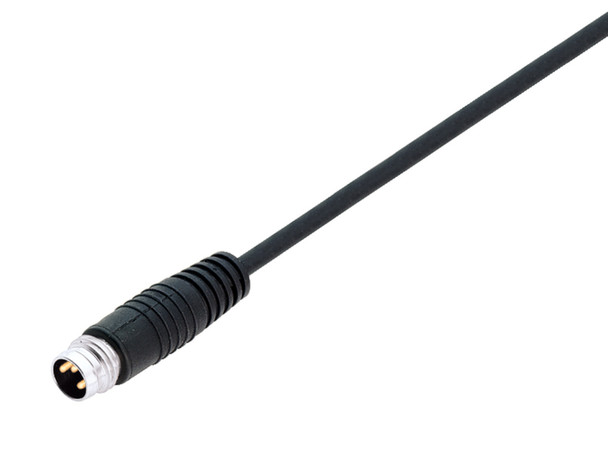

| Connector design | Male cable connector |
|---|
| Cable length | 2 m |
|---|
| Version | Connector pin straight |
|---|
| Weight (g) | 74.00 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Insulation resistance | > 10? ? |
|---|
| EMC compliance | unshielded |
|---|
| Voltage | 1000 V DC |
|---|
Material| Housing material | PUR |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 4e0fb8d4-ad80-4171-b6e1-6e77f1f76e77 |
|---|
