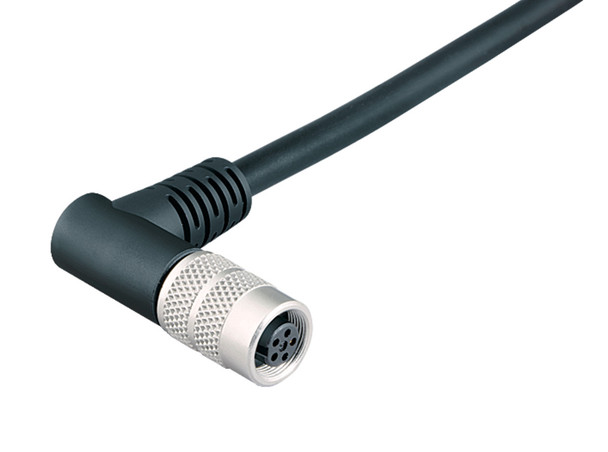

These subminiature M9 connectors are available with 2 to 8 contacts for panel mounting or as cable connectors where binder also offers moulded versions. Both versions are shieldable. Cable connectors feature solder termination while the panel mount versions are available with solder and dip solder termination. Degree of protection is IP67 with an operating temperature range is -40°C to +85°C.
General Features| Part no. | 79 1414 75 05 |
|---|
| Connector design | Female angled connector |
|---|
| Cable length | 5 m |
|---|
| Version | Connector socket angled |
|---|
| Connector locking system | screw |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.25 mm² / AWG 24 |
|---|
| Temperature range from/to | -25 °C / 70 °C |
|---|
| Mechanical operation | > 500 Mating cycles |
|---|
| Weight (g) | 220.00 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 125 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 3,0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 1 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | III |
|---|
| EMC compliance | shielded |
|---|
| Shield connection | Shield on the threaded ring |
|---|
Material| Housing material | PUR |
|---|
| Contact body material | PBT (UL94 V-0) |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| Locking material | CuZn (brass) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 697502df-e754-470d-995d-0da566dfd89a |
|---|
Cable Data| Structure of the cable |
| Cable diameter | 4.8 mm |
|---|
| Cross section | 5 x 0.25 mm² |
|---|
| Sheath material | PUR |
|---|
| Single-lead insulation | PP |
|---|
| Single-lead structure | 32 x 0.10 mm |
|---|
| Cable color | black |
|---|
| Electrical properties |
| Conductor resistance | 75 ?/Km (20°C) |
|---|
| Mechanical properties |
| Bending radius, fixed cable | ? 5 x Ø |
|---|
| Bending radius, moving cable | ? 10 x Ø |
|---|
| Bending cycles | > 2 million |
|---|
| Travel speed | at 5 m horizontal path -> 200 m/min |
|---|
| Thermal properties |
| Temperature range cable in move from/to | -25 °C / 90 °C |
|---|
| Temperature range cable fixed from/to | -50 °C / 90 °C |
|---|
| Other features |
| Halogen free | yes |
|---|
