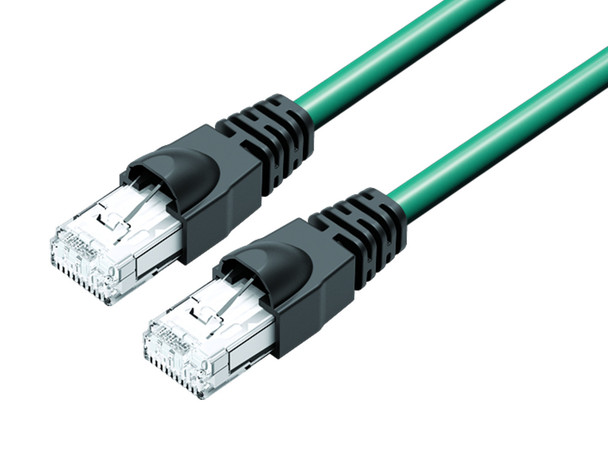

binders double-ended RJ45 connectors are designed for reliable Ethernet IP and PROFINET data transmission. The RJ45 connectors come in different cable lengths and with different Industrial ethernet cables such as Ethernet CAT7, CAT6a or Ethernet CAT5e. binders RJ45 cable connectors are shielded, achieve protection class IP20 and are available with 4 to 8 contacts. The double-ended ethernet cordsets are also available in different versions such as M8 D-coded to RJ45, M12 to RJ45, M12 D-coded to RJ45 and M12 X-coded to RJ45.
General Features| Part no. | 77 9753 9753 34704-0015 |
|---|
| Connector design | Connecting cable 2 RJ45 connector |
|---|
| Cable length | 0.15 m |
|---|
| Version | Connecting cable |
|---|
| Connector locking system | lock |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP20 |
|---|
| Cross-sectional area | 2 x 2 x AWG 24 |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
Electrical Parameters| Rated voltage | 50 V |
|---|
| Rated impulse voltage | 1000 V |
|---|
| Rated current (40 °C) | 1.5 A |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | II |
|---|
| EMC compliance | shielded |
|---|
Material| Contact body material | Polymid |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| REACH SVHC | None (No pollutants)
|
|---|
| SCIP number | SCIP-number not available |
|---|
