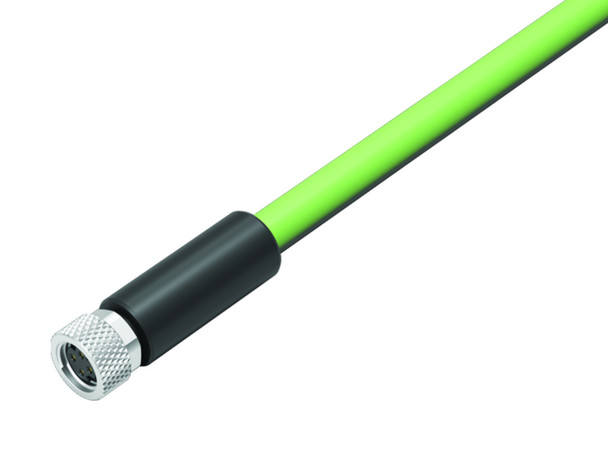

M8 connectors with D-coding of the 818 series according to DIN EN 61076-2-114 are designed for secure Ethernet data transmission up to 100 MBit/s in the network. They have 360° shielding and comply with protection class IP67, have 4 contacts and are available as straight cable connectors and as straight and angled flange connectors. The cable connectors that can be assembled have screw terminals, the flange connectors have dip solder terminals and shielding plate.
General Features| Part no. | 77 5430 0000 50704-0500 |
|---|
| Connector design | Female cable connector |
|---|
| Cable length | 5 m |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | M8x1 |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.34 mm² / AWG 22 |
|---|
| Temperature range from/to | -25 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 133 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 63 V DC |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 4.0 A |
|---|
| Insulation resistance | > 10? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | I |
|---|
| EMC compliance | shielded |
|---|
| Shield connection | Shield on the threaded ring |
|---|
Material| Contact body material | PUR black |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| Locking material | CuZn (brass) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 044e3ab1-9fcd-4150-8bc1-fd354c7b3073 |
|---|
Cable Data| Structure of the cable |
| Cable type | Profinet/Ethernet CAT5e |
|---|
| Cable diameter | 6.7 mm |
|---|
| Cross section | 4 x AWG 22 |
|---|
| Sheath material | PUR |
|---|
| Single-lead insulation | Polyolefin |
|---|
| Cable color | green |
|---|
| Electrical properties |
| Conductor resistance | 55 ?/Km (20°C) |
|---|
| Mechanical properties |
| Bending radius, fixed cable | ? 5 x Ø |
|---|
| Bending radius, moving cable | ? 15 x Ø |
|---|
| Bending cycles | 2 million |
|---|
| Permitted acceleration | max. 2 m/s² |
|---|
| Travel distance, horizontal | max. 5 m |
|---|
| Travel distance, vertical | max. 5 m |
|---|
| Travel speed | 200 m/min |
|---|
| Thermal properties |
| Temperature range cable in move from/to | -20 °C / 60 °C |
|---|
| Temperature range cable fixed from/to | -40 °C / 80 °C |
|---|
| Other features |
| Halogen free | yes |
|---|
