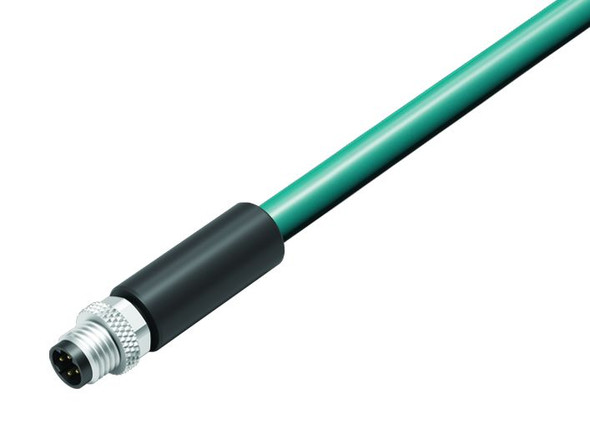

M8 connectors with D-coding of the 818 series are designed for sensors and actuators in small installation spaces. They are shielded and achieve protection class IP67, have 4 contacts and are available as straight cable connectors and as straight and angled flange connectors. The cable connectors are available for self-connection with a screw terminal connection or with overmoulded heads, the flange connectors via a dip solder connection.
General Features| Part no. | 77 5429 5429 34704-0200 |
|---|
| Connector design | Connecting cable 2 male cable connectors |
|---|
| Cable length | 2 m |
|---|
| Version | Connecting cable |
|---|
| Connector locking system | M8x1 |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.34 mm² / AWG 22 |
|---|
| Temperature range from/to | -25 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 36 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 25 V AC (60 V DC) |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 4.0 A |
|---|
| Insulation resistance | > 10? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | I |
|---|
| EMC compliance | shielded |
|---|
| Shield connection | Shield on the threaded ring |
|---|
Material| Contact body material | PUR black |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| Locking material | CuZn (brass) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | b9b7aed4-d2ae-4062-b250-9bab9f4ec2e6 |
|---|
Cable Data| Structure of the cable |
| Cable type | Ethernet CAT5e |
|---|
| Cable diameter | 6.6 mm |
|---|
| Cross section | 2 x 2 x AWG 24 |
|---|
| Sheath material | TPE |
|---|
| Single-lead insulation | Polyolefin |
|---|
| Cable color | blue green |
|---|
| Electrical properties |
| Operating voltage | 300 V |
|---|
| Conductor resistance | 55 ?/Km (20°C) |
|---|
| Mechanical properties |
| Bending radius, fixed cable | ? 5 x Ø |
|---|
| Bending radius, moving cable | ? 15 x Ø |
|---|
| Bending cycles | 2 million |
|---|
| Permitted acceleration | max. 2 m/s² |
|---|
| Travel distance, horizontal | max. 5 m |
|---|
| Travel distance, vertical | max. 5 m |
|---|
| Travel speed | 200 m/min |
|---|
| Thermal properties |
| Temperature range cable in move from/to | -20 °C / 60 °C |
|---|
| Temperature range cable fixed from/to | -40 °C / 80 °C |
|---|
| Other features |
| Halogen free | yes |
|---|
