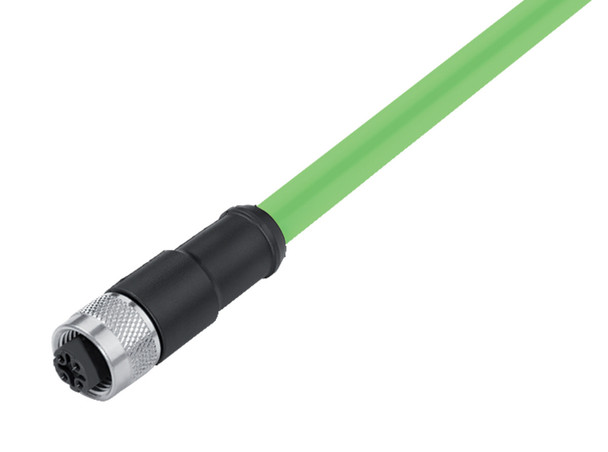

M12 connectors with D-coding of the 825/876 series for high-performance applications such as PROFINET and Ethernet have screw/cutting terminal connection and reach Cat5. Cable connectors are also available with moulded cable, flange connectors have solder and dip solder connections. The connectors have excellent shielding and achieve IP67 protection. Shielded M12-D to RJ45 adapters are available straight and angled.
General Features| Part no. | 77 4530 0000 50704-0500 |
|---|
| Connector design | Female cable connector |
|---|
| Cable length | 5 m |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | screw |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 1 x 4 x AWG 22 |
|---|
| Temperature range from/to | -40 °C / 85 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 20 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 250 V |
|---|
| Rated impulse voltage | 2500 V |
|---|
| Rated current (40 °C) | 4.0 A |
|---|
| Insulation resistance | > 10¹? ? |
|---|
| Pollution degree | 3 |
|---|
| Transmission rate | CAT 5 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | I |
|---|
| EMC compliance | shielded |
|---|
| Shield connection | Shield on the threaded ring |
|---|
Material| Housing material | PUR |
|---|
| Contact body material | PUR |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| Locking material | Zinc die-cast nickel-plated |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 2a8ef765-b60e-478a-a37c-586225e1fbde |
|---|
Declarations of conformity| Low Voltage Directive | 2014/35/EU (EN 60529:1991;EN 60204-1:2018) |
|---|
| RoHS Directive | 2011/65/EU (EN 50581:2012) |
|---|
