The A-coded M12 circular connectors are designed for many automation applications, meeting the common requirements of the automation industry. M12 A connectors are available with 3, 4, 5, 8 and 12 contacts with a rated current up to 4A at 250V. Various connection types are available, including crimp connection and moulded, ready-to-connect cable. There are also easy-to-mount flange versions with various connection options such as solder, dip solder and stranded wire. The wide product range is rounded off with Food & Beverage, EMC and LED versions, among others.

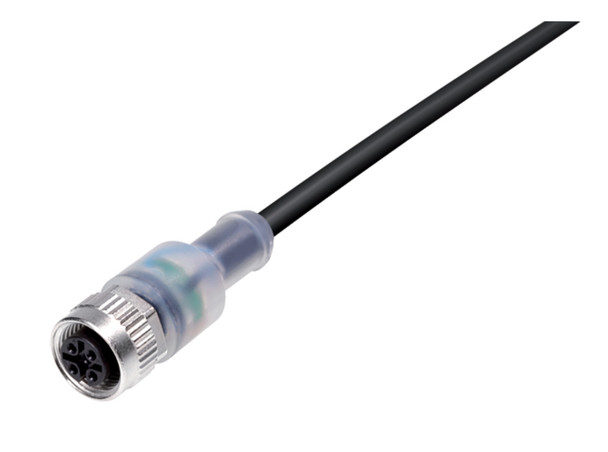

General Features| Part no. | 77 3630 0000 50003-0500 |
|---|
| Connector design | Female cable connector |
|---|
| Cable length | 5 m |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | screw |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP69K |
|---|
| Cross-sectional area | 0.34 mm² / AWG 22 |
|---|
| Temperature range from/to | -25 °C / 90 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Additional information | with LED PNP closer |
|---|
| Weight (g) | 200 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 10 - 30 V |
|---|
| Rated impulse voltage | 500 V |
|---|
| Rated current (40 °C) | 4.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 3 |
|---|
| Insulating material group | II |
|---|
| EMC compliance | unshielded |
|---|
Material| Housing material | PUR |
|---|
| Contact body material | PUR |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| Locking material | Zinc die-cast nickel-plated |
|---|
| REACH SVHC | None (No pollutants)
|
|---|
| SCIP number | SCIP-number not available |
|---|
Cable Data| Structure of the cable |
| Cable diameter | 4.3 mm |
|---|
| Cross section | 3 x 0.34 mm² |
|---|
| Sheath material | PUR |
|---|
| Single-lead insulation | PP9Y halogen-free |
|---|
| Single-lead structure | 43 x 0.10 mm |
|---|
| Cable color | black |
|---|
| Electrical properties |
| Conductor resistance | 60 ?/Km (20°C) |
|---|
| Mechanical properties |
| Bending radius, fixed cable | ? 5 x Ø |
|---|
| Bending radius, moving cable | ? 10 x Ø |
|---|
| Bending cycles | > 5 million |
|---|
| Permitted acceleration | ? 5 m/s² |
|---|
| Travel distance, horizontal | ? 5 m |
|---|
| Travel distance, vertical | ? 5 m |
|---|
| Travel speed | ? 200 m/min |
|---|
| Thermal properties |
| Temperature range cable in move from/to | -25 °C / 80 °C |
|---|
| Temperature range cable fixed from/to | -50 °C / 80 °C |
|---|
| Other features |
| Halogen free | yes |
|---|
