Binder

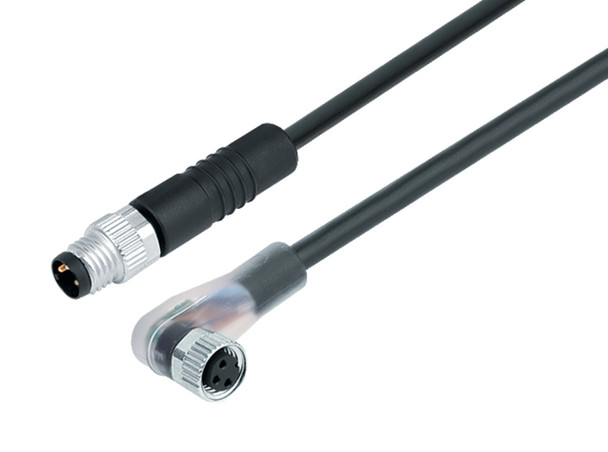

Binder 77-3608-3405-50003-0100 M8 Connecting cable male cable connector - female angled connector with LED, Contacts: 3, unshielded, moulded on the cable, IP67, UL, PUR, black, 3 x 0.34 mm², 1 m

No reviews yet Write a Review
$20.58
Binder 77-3608-3405-50003-0100 M8 Connecting cable male cable connector - female angled connector with LED, Contacts: 3, unshielded, moulded on the cable, IP67, UL, PUR, black, 3 x 0.34 mm², 1 m | American Cable Assemblies
Binder 77-3608-3405-50003-0100 M8 Connecting cable male cable connector - female angled connector with LED, Contacts: 3, unshielded, moulded on the cable, IP67, UL, PUR, black, 3 x 0.34 mm², 1 m
Binder 77-3608-3405-50003-0100 M8 Connecting cable male cable connector - female angled connector with LED, Contacts: 3, unshielded, moulded on the cable, IP67, UL, PUR, black, 3 x 0.34 mm², 1 m
SKU:
BN77-3608-3405-50003-0100
MPN:
77-3608-3405-50003-0100
Availability:
Call for Pricing 413 283 2515
Minimum Purchase:
1 unit
Current Stock:

Frequently Bought Together:

Inc. Tax
Ex. Tax

Description

Easy-to-mount M8 cable connectors to DIN EN 61076-2-104 in protection class IP65/67, unshielded and shielded versions with 360° shielding, iris spring and shielding rings ensure reliable EMC shielding. Rated current 1A to 4A and rated voltage 30V to 60V depending on the number of contacts. There are solder and screw terminals. The flange connectors have solder and dip solder connections or stranded wires.
General Features
Part no. 77 3608 3405 50003-0100
Alternative part no.: 79 5056 10 03

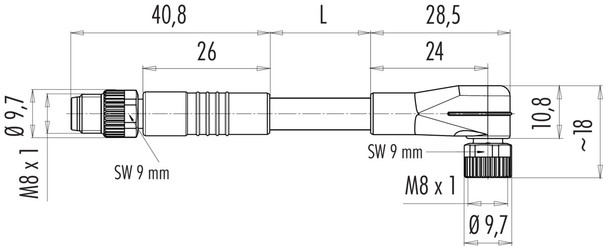

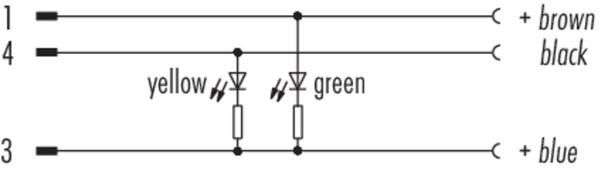

Connector design Connecting cable male cable connector - female angled connector with LED
Cable length 1 m
Version Connecting cable
Connector locking system screw
Termination moulded on the cable
Degree of protection IP67
Cross-sectional area 0.34 mm² / AWG 24
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 87
Customs tariff number 85444290

Electrical Parameters
Rated voltage 30 V
Rated impulse voltage 800 V
Rated current (40 °C) 4.0 A
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Material
Housing material PUR
Contact body material PUR
Contact material CuZn (brass) / CuSn (bronze)
Contact plating Au (gold)
Locking material Zinc die-cast nickel-plated
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 20ce775d-7ea3-46d2-9dd4-cd26dbc7ba58
Declarations of conformity
RoHS Directive 2011/65/EU (EN 50581:2012)
