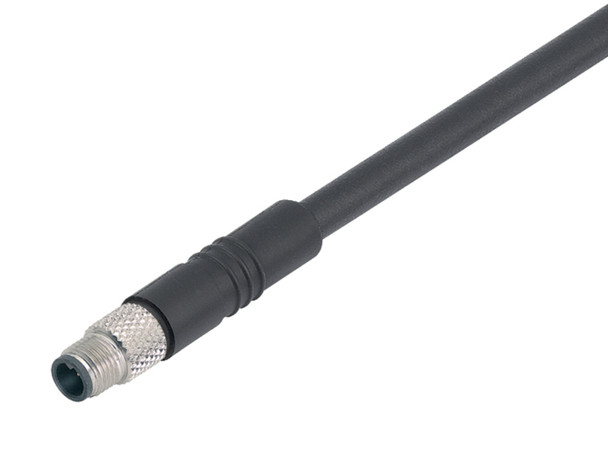

These circular connectors with screw locking according to DIN EN 61076-2-105 are available as straight and angled cable versions as well as easy-to-mount flange plugs and sockets. A threaded ring serves as vibration protection. There is a choice of 3 and 4 gold-plated brass contacts with a rated current of 1A at a rated voltage of 60V. Protection class is IP67.
General Features| Part no. | 77 3559 0000 40004-0500 |
|---|
| Connector design | Male cable connector |
|---|
| Cable length | 5 m |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | screw |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.14 mm² / AWG 26 |
|---|
| Temperature range from/to | -25 °C / 80 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 117 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 60 V |
|---|
| Rated impulse voltage | 800 V |
|---|
| Rated current (40 °C) | 1.0 A |
|---|
| Insulation resistance | > 10? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | I |
|---|
| EMC compliance | shielded |
|---|
| Shield connection | Shield on the threaded ring |
|---|
Material| Housing material | PUR |
|---|
| Contact body material | PUR |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| Locking material | CuZn (brass) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 4e56cd3e-7549-4ae2-9b42-94fb2221724b |
|---|
Cable Data| Structure of the cable |
| Cable diameter | 4.0 mm |
|---|
| Cross section | 4 x 0.14 mm² |
|---|
| Sheath material | PUR |
|---|
| Single-lead insulation | PVC |
|---|
| Single-lead structure | 18 x 0.10 mm |
|---|
| Cable color | black |
|---|
| Electrical properties |
| Conductor resistance | 148 ?/Km (20°C) |
|---|
| Thermal properties |
| Temperature range cable in move from/to | -5 °C / 80 °C |
|---|
| Temperature range cable fixed from/to | -25 °C / 80 °C |
|---|
| Other features |
| Halogen free | no |
|---|
