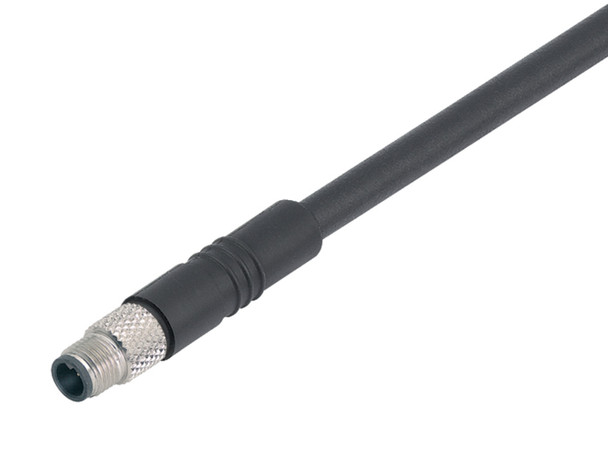

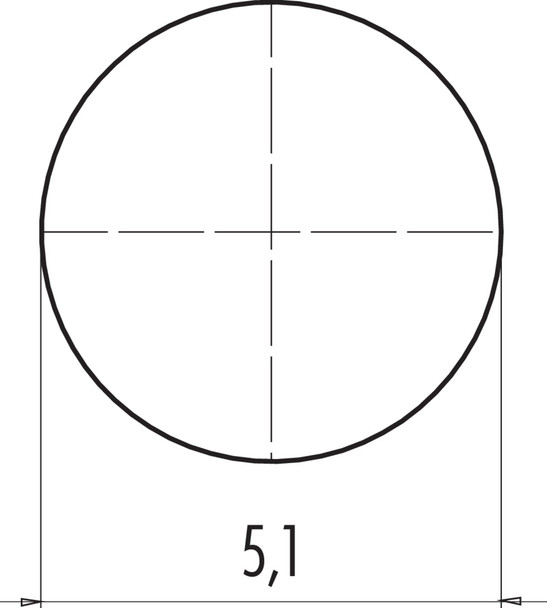

These circular connectors with screw locking according to DIN EN 61076-2-105 are available as straight and angled cable versions as well as easy-to-mount flange plugs and sockets. A threaded ring serves as vibration protection. There is a choice of 3 and 4 gold-plated brass contacts with a rated current of 1A at a rated voltage of 60V. Protection class is IP67.
General Features| Part no. | 77 3559 0000 40003-0200 Alternative part no.: 79 3121 52 03 |
|---|
| Notice | Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the Contact Customer Service form on the right. More |
|---|
| Connector design | Male cable connector |
|---|
| Cable length | 2 m |
|---|
| Version | Connector pin straight |
|---|
| Connector locking system | screw |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.14 mm² / AWG 26 |
|---|
| Temperature range from/to | -25 °C / 80 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 38 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 60 V |
|---|
| Rated impulse voltage | 800 V |
|---|
| Rated current (40 °C) | 1.0 A |
|---|
| Insulation resistance | > 10? ? |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | I |
|---|
| EMC compliance | shielded |
|---|
| Shield connection | Shield on the threaded ring |
|---|
Material| Housing material | PUR |
|---|
| Contact body material | PUR |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| Locking material | CuZn (brass) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | de0a3271-ff72-4e91-8a19-5c9a21bb4cc6 |
|---|
Cable Data| Structure of the cable |
| Cable diameter | 3.5 mm |
|---|
| Cross section | 3 x 0.14 mm² |
|---|
| Sheath material | PUR |
|---|
| Single-lead insulation | PVC |
|---|
| Single-lead structure | 18 x 0.10 mm |
|---|
| Cable color | black |
|---|
| Electrical properties |
| Conductor resistance | 134 ?/Km (20°C) |
|---|
| Mechanical properties |
| Bending radius, fixed cable | ? 5 x Ø |
|---|
| Bending radius, moving cable | ? 10 x Ø |
|---|
| Thermal properties |
| Temperature range cable in move from/to | -5 °C / 80 °C |
|---|
| Temperature range cable fixed from/to | -25 °C / 80 °C |
|---|
| Other features |
| Halogen free | no |
|---|
