The A-coded M12 circular connectors are designed for many automation applications, meeting the common requirements of the automation industry. M12 A connectors are available with 3, 4, 5, 8 and 12 contacts with a rated current up to 4A at 250V. Various connection types are available, including crimp connection and moulded, ready-to-connect cable. There are also easy-to-mount flange versions with various connection options such as solder, dip solder and stranded wire. The wide product range is rounded off with Food & Beverage, EMC and LED versions, among others.
General Features| Part no. | 77 3530 0000 50708-1000 Alternative part no.: 79 3580 21 08 |
|---|

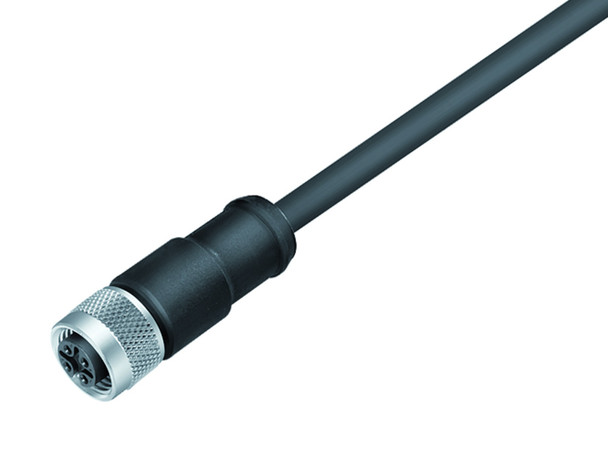

| Connector design | Female cable connector |
|---|
| Cable length | 10 m |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | screw |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.25 mm² / AWG 24 |
|---|
| Temperature range from/to | -25 °C / 90 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 583 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 30 V |
|---|
| Rated voltage UL | 2457 |
|---|
| Rated impulse voltage | 800 V |
|---|
| Rated current (40 °C) | 2.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 3 |
|---|
| Insulating material group | II |
|---|
| EMC compliance | shielded |
|---|
| Shield connection | Shield on the threaded ring |
|---|
Material| Housing material | PUR |
|---|
| Contact body material | PUR |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| Locking material | CuZn (brass) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | e8234312-4c4d-494a-acc8-309aba7e96b3 |
|---|

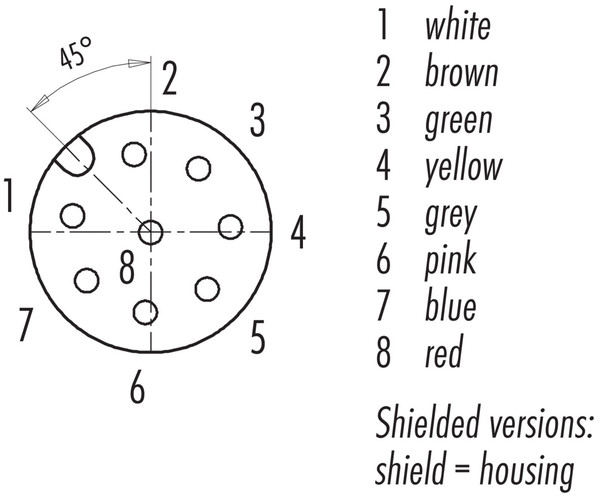

Cable Data| Structure of the cable |
| Cable diameter | 6.0 mm |
|---|
| Cross section | 8 x 0.25 mm² |
|---|
| Sheath material | PUR |
|---|
| Single-lead insulation | PP9Y halogen-free |
|---|
| Single-lead structure | 32 x 0.10 mm |
|---|
| Cable color | black |
|---|
| Electrical properties |
| Conductor resistance | 79 ?/Km (20°C) |
|---|
| Mechanical properties |
| Bending radius, fixed cable | ? 5 x Ø |
|---|
| Bending radius, moving cable | ? 10 x Ø |
|---|
| Bending cycles | > 2 million |
|---|
| Permitted acceleration | 5 m/s² |
|---|
| Travel distance, horizontal | 5 m/s² -> 5 m |
|---|
| Travel distance, vertical | 5 m/s² -> 2 m |
|---|
| Travel speed | ? 200 m/min (5 m horizontal distance) |
|---|
| Thermal properties |
| Temperature range cable in move from/to | -25 °C / 90 °C |
|---|
| Temperature range cable fixed from/to | -50 °C / 90 °C |
|---|
| Other features |
| Halogen free | yes |
|---|
