The A-coded M12 circular connectors are designed for many automation applications, meeting the common requirements of the automation industry. M12 A connectors are available with 3, 4, 5, 8 and 12 contacts with a rated current up to 4A at 250V. Various connection types are available, including crimp connection and moulded, ready-to-connect cable. There are also easy-to-mount flange versions with various connection options such as solder, dip solder and stranded wire. The wide product range is rounded off with Food & Beverage, EMC and LED versions, among others.
General Features| Part no. | 77 3530 0000 20705-0200 Alternative part no.: 79 3540 12 05 |
|---|
| Notice | Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the Contact Customer Service form on the right. More |
|---|
| Connector design | Female cable connector |
|---|
| Cable length | 2 m |
|---|
| Version | Connector socket straight |
|---|
| Connector locking system | screw |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.25 mm² / AWG 24 |
|---|
| Temperature range from/to | -25 °C / 90 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 221 |
|---|
| Customs tariff number | 85444290 |
|---|
Electrical Parameters| Rated voltage | 60 V |
|---|
| Rated impulse voltage | 1500 V |
|---|
| Rated current (40 °C) | 4.0 A |
|---|
| Insulation resistance | ? 10¹? ? |
|---|
| Pollution degree | 3 |
|---|
| Insulating material group | II |
|---|
| EMC compliance | shielded |
|---|
| Shield connection | Shield on the threaded ring |
|---|
Material| Housing material | PUR |
|---|
| Contact body material | PUR |
|---|
| Contact material | CuSn (bronze) |
|---|
| Contact plating | Au (gold) |
|---|
| Locking material | CuZn (brass) |
|---|
| REACH SVHC | CAS 7439-92-1 (Lead)
|
|---|
| SCIP number | 9a709c13-06d3-4d73-b717-f4725db95db7 |
|---|

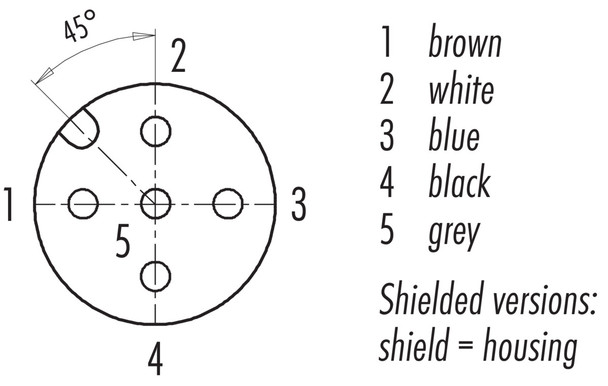

Cable Data| Structure of the cable |
| Cable diameter | 5.7 mm |
|---|
| Cross section | 5 x 0.25 mm² |
|---|
| Sheath material | PVC |
|---|
| Single-lead insulation | PVC |
|---|
| Single-lead structure | 32 x 0.10 mm |
|---|
| Cable color | grey |
|---|
| Electrical properties |
| Conductor resistance | 75 ?/Km (20°C) |
|---|
| Mechanical properties |
| Bending radius, fixed cable | ? 5 x Ø |
|---|
| Bending radius, moving cable | ? 10 x Ø |
|---|
| Bending cycles | > 2 million |
|---|
| Permitted acceleration | max. 5 m/s² + 1 m/s² |
|---|
| Travel distance, horizontal | 5 m/s² -> 5 m |
|---|
| Travel distance, vertical | 5 m/s² -> 2 m |
|---|
| Travel speed | ? 200 m/min (5 m horizontal distance) |
|---|
| Thermal properties |
| Temperature range cable in move from/to | -5 °C / 105 °C |
|---|
| Temperature range cable fixed from/to | -40 °C / 105 °C |
|---|
| Other features |
| Halogen free | no |
|---|
