Complementing the wide range of cable and flange connectors, connecting cables with screw locking are available in IP67/68 and IP69K to precisely meet customer requirements. The cable length can be 1m or 2m as standard. To extend the range of applications and enable flexible signal distribution, we offer M8x1 and M12x1 duo connectors moulded onto the cable as well as M8 and M12 compatible two-way distributors.

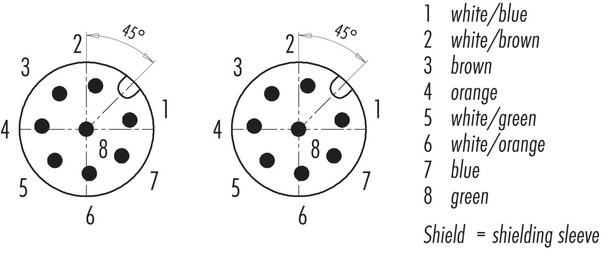

General Features| Part no. | 77 3529 3529 34708-0360 |
|---|
| Connector design | Connecting cable 2 male cable connectors |
|---|
| Cable length | 3.6 m |
|---|
| Version | Connecting cable |
|---|
| Connector locking system | screw |
|---|
| Termination | moulded on the cable |
|---|
| Degree of protection | IP67 |
|---|
| Cross-sectional area | 0.25 mm² / AWG 24 |
|---|
| Temperature range from/to | -25 °C / 90 °C |
|---|
| Mechanical operation | > 100 Mating cycles |
|---|
| Weight (g) | 172 |
|---|
Electrical Parameters| Rated voltage | 30 V |
|---|
| Rated impulse voltage | 800 V |
|---|
| Rated current (40 °C) | 2.0 A |
|---|
| Pollution degree | 3 |
|---|
| Overvoltage category | II |
|---|
| Insulating material group | II |
|---|
| EMC compliance | shielded |
|---|
Material| Contact body material | PUR |
|---|
| Contact material | CuZn (brass) |
|---|
| Contact plating | Au (gold) |
|---|
| SCIP number | SCIP-number not available |
|---|
