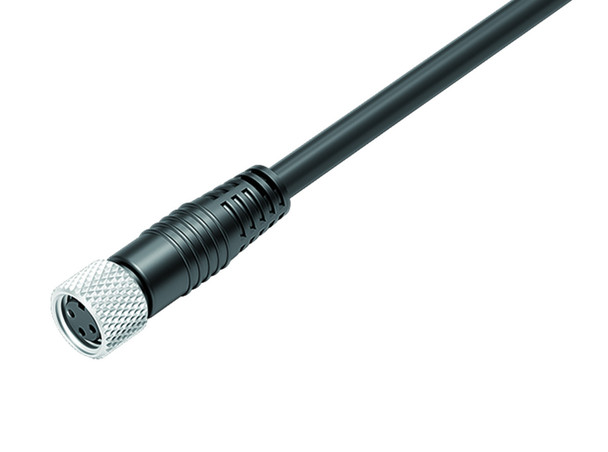

Binder 77-3506-0000-50004-0500 M8 Female cable connector, Contacts: 4, shielded, moulded on the cable, IP67, UL, PUR, black, 4 x 0.34 mm², 5 m

No reviews yet Write a Review
$38.08
Binder 77-3506-0000-50004-0500 M8 Female cable connector, Contacts: 4, shielded, moulded on the cable, IP67, UL, PUR, black, 4 x 0.34 mm², 5 m | American Cable Assemblies
Binder 77-3506-0000-50004-0500 M8 Female cable connector, Contacts: 4, shielded, moulded on the cable, IP67, UL, PUR, black, 4 x 0.34 mm², 5 m
Binder 77-3506-0000-50004-0500 M8 Female cable connector, Contacts: 4, shielded, moulded on the cable, IP67, UL, PUR, black, 4 x 0.34 mm², 5 m
SKU:
BN77-3506-0000-50004-0500
MPN:
77-3506-0000-50004-0500
Availability:
Lead time - Stock items ship 1-2 Days
Minimum Purchase:
1 unit
Current Stock:
Product Type:
M8, series 718, Automation Technology - Sensors and Actuators
Numbers of contacts:
4
Cable length:
5 m
$38.08

Frequently Bought Together:

Binder 77-3506-0000-50004-0500 M8 Female cable connector, Contacts: 4, shielded, moulded on the cable, IP67, UL, PUR, black, 4 x 0.34 mm², 5 m | American Cable Assemblies
Inc. Tax
Ex. Tax

Description

Easy-to-mount M8 cable connectors to DIN EN 61076-2-104 in protection class IP65/67, unshielded and shielded versions with 360° shielding, iris spring and shielding rings ensure reliable EMC shielding. Rated current 1A to 4A and rated voltage 30V to 60V depending on the number of contacts. There are solder and screw terminals. The flange connectors have solder and dip solder connections or stranded wires.
General Features
Part no. 77 3506 0000 50004-0500
Connector design Female cable connector
Cable length 5 m
Version Connector socket straight
Connector locking system screw
Termination moulded on the cable
Degree of protection IP67
Cross-sectional area 0.34 mm² / AWG 22
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 272
Customs tariff number 85444290

Electrical Parameters
Rated voltage 60 V
Rated impulse voltage 1500 V
Rated current (40 °C) 4.0 A
Pollution degree 3
Overvoltage category III
Insulating material group II
EMC compliance shielded
Shield connection Shield on the threaded ring
Material
Housing material PUR
Contact body material PUR
Contact material CuZn (brass)
Contact plating Au (gold)
Locking material CuZn (brass)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 03314c9e-6af5-4830-b7e5-11c4e7bffbf8
Declarations of conformity
Low Voltage Directive 2014/35/EU (EN 60529:1991;EN 60204-1:2018)
RoHS Directive 2011/65/EU (EN 50581:2012)
